Apollo Automation

CAST-1 Audio Casting

$29.99
$29.99
Shipping calculated at checkout.

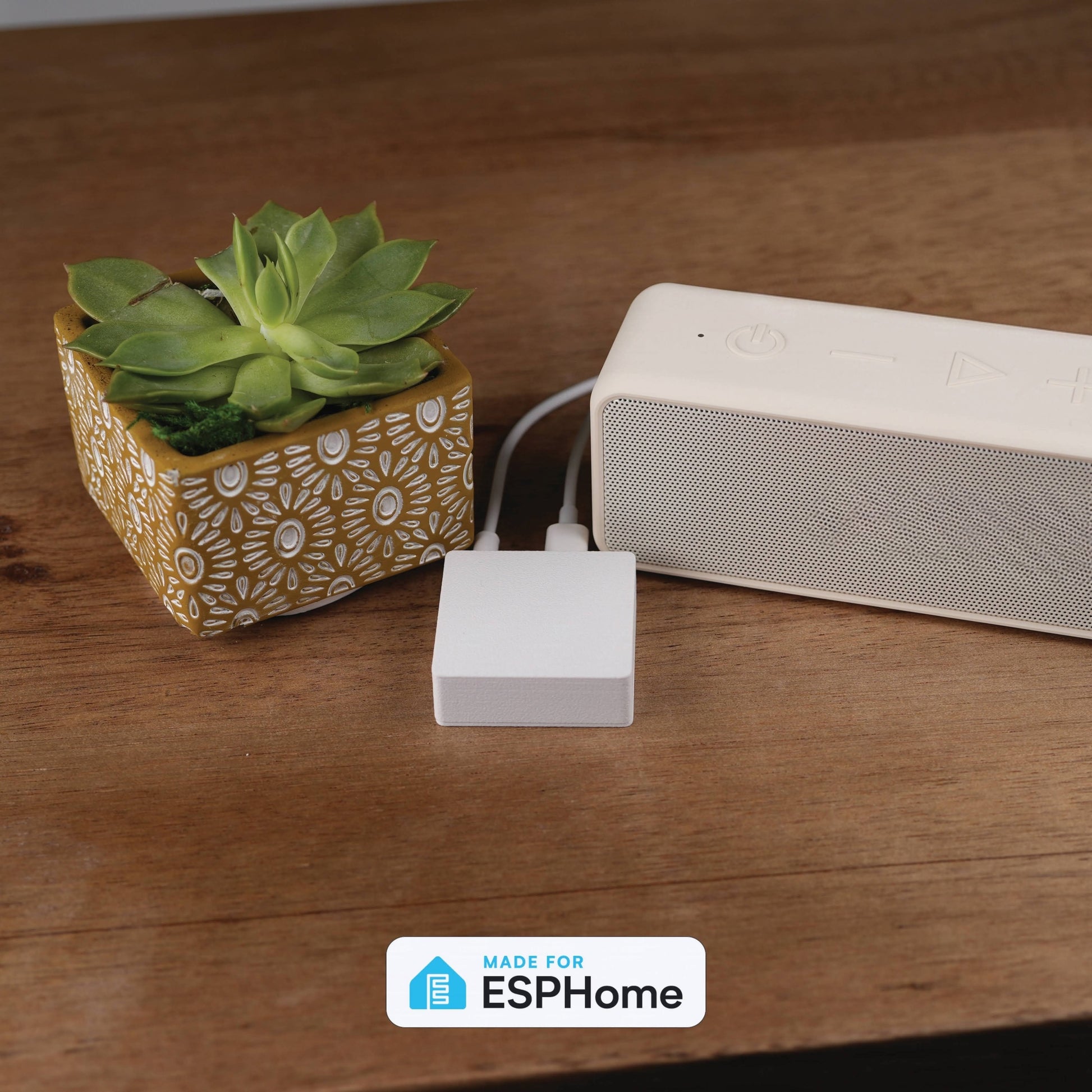

The Apollo CAST-1 makes your non-smart speakers smart! The CAST-1 plugs into powered speakers, amplifiers, and AV receivers with a 3.5mm cable and allows them to connect to ESPHome and Music Assistant (via SendSpin). This lets you stream music, announcements, alarms, and more from your smart home to your existing speakers.

The CAST-1 runs open source ESPHome firmware and supports SendSpin, the open audio streaming and synchronization protocol developed by the Open Home Foundation. SendSpin also lets you synchronize whole-home audio across multiple CAST-1 units, or a mixture of CAST-1 and other smart connected speakers, meaning you can walk from room to room enjoying your music, all playing perfectly in sync.

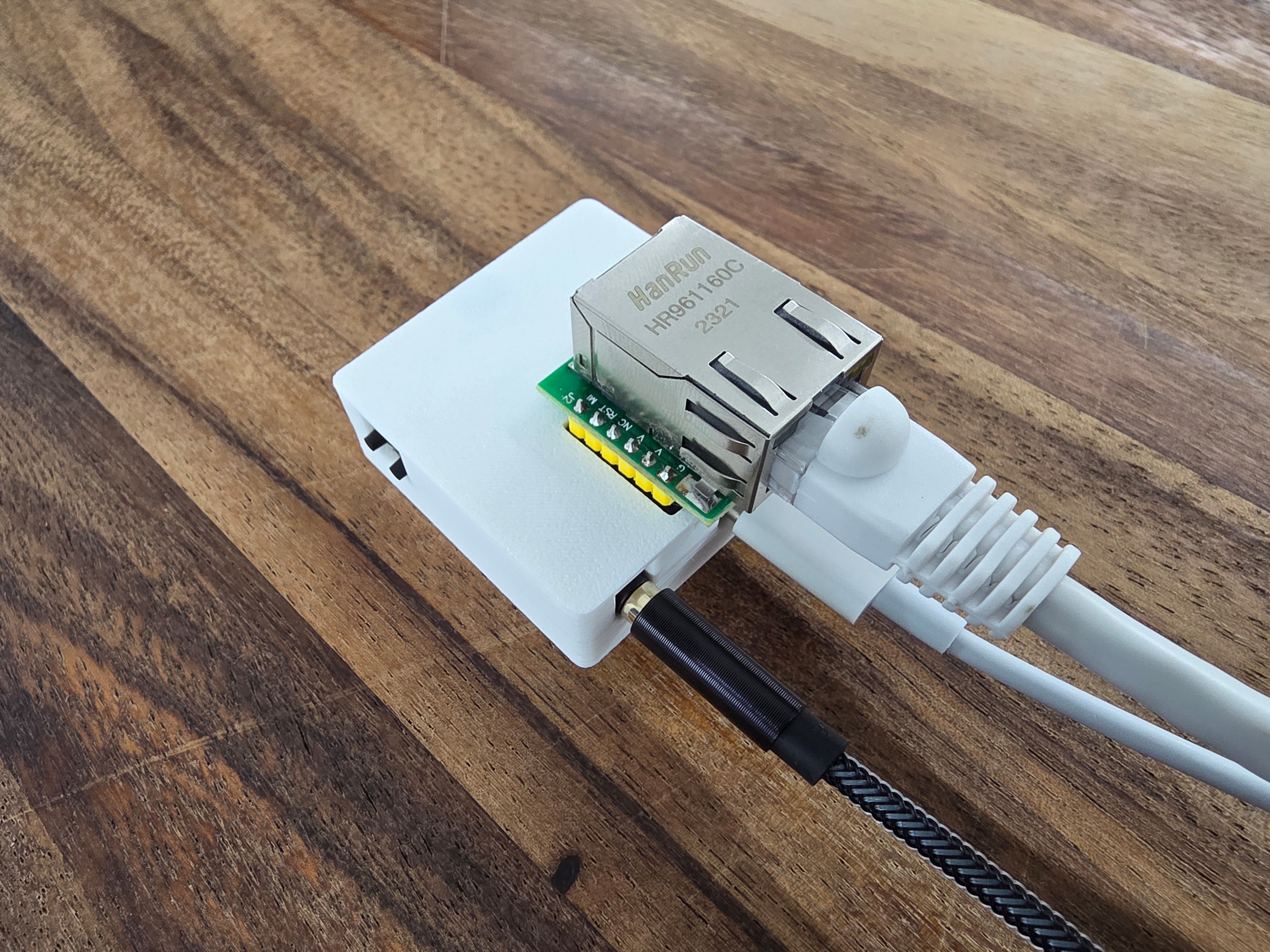

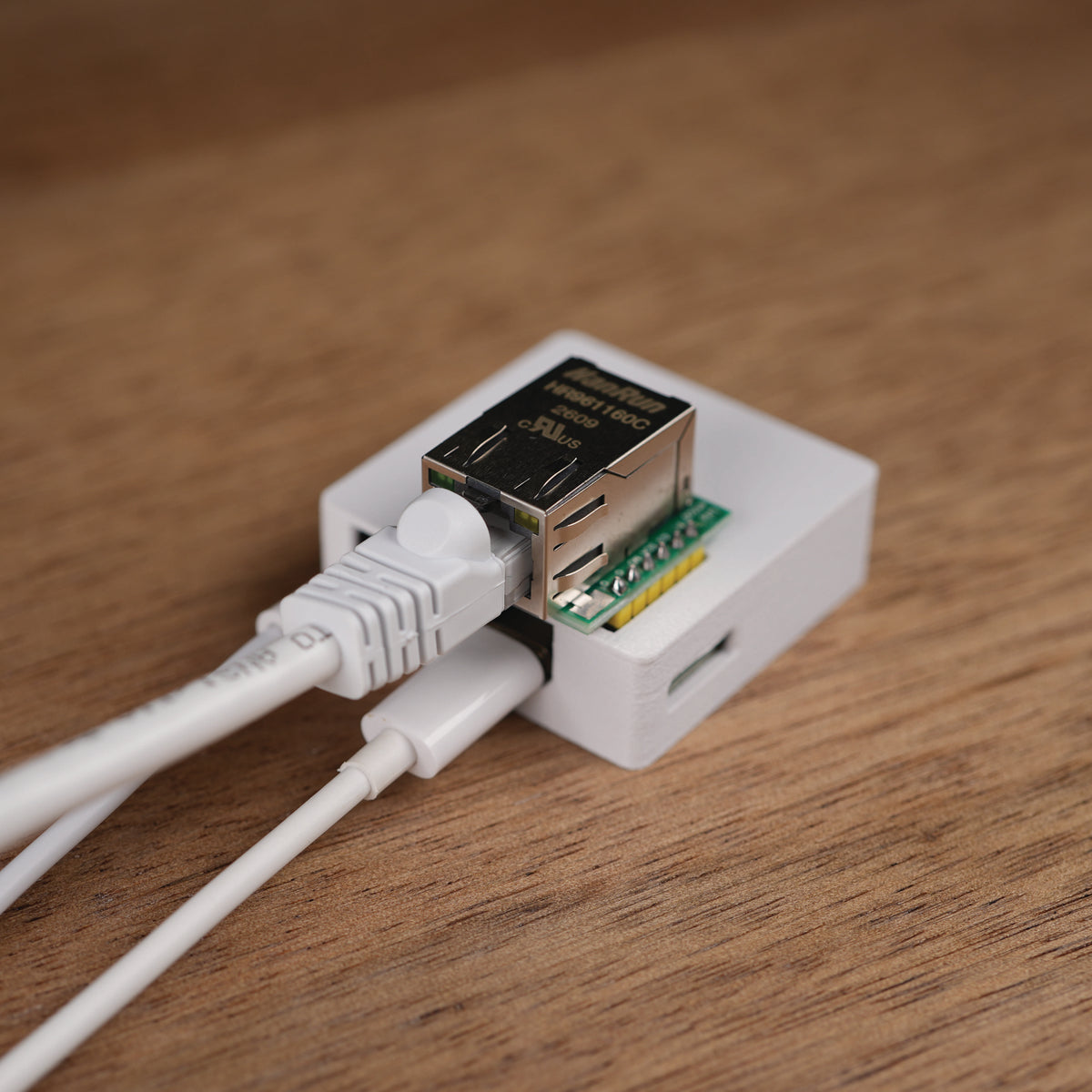

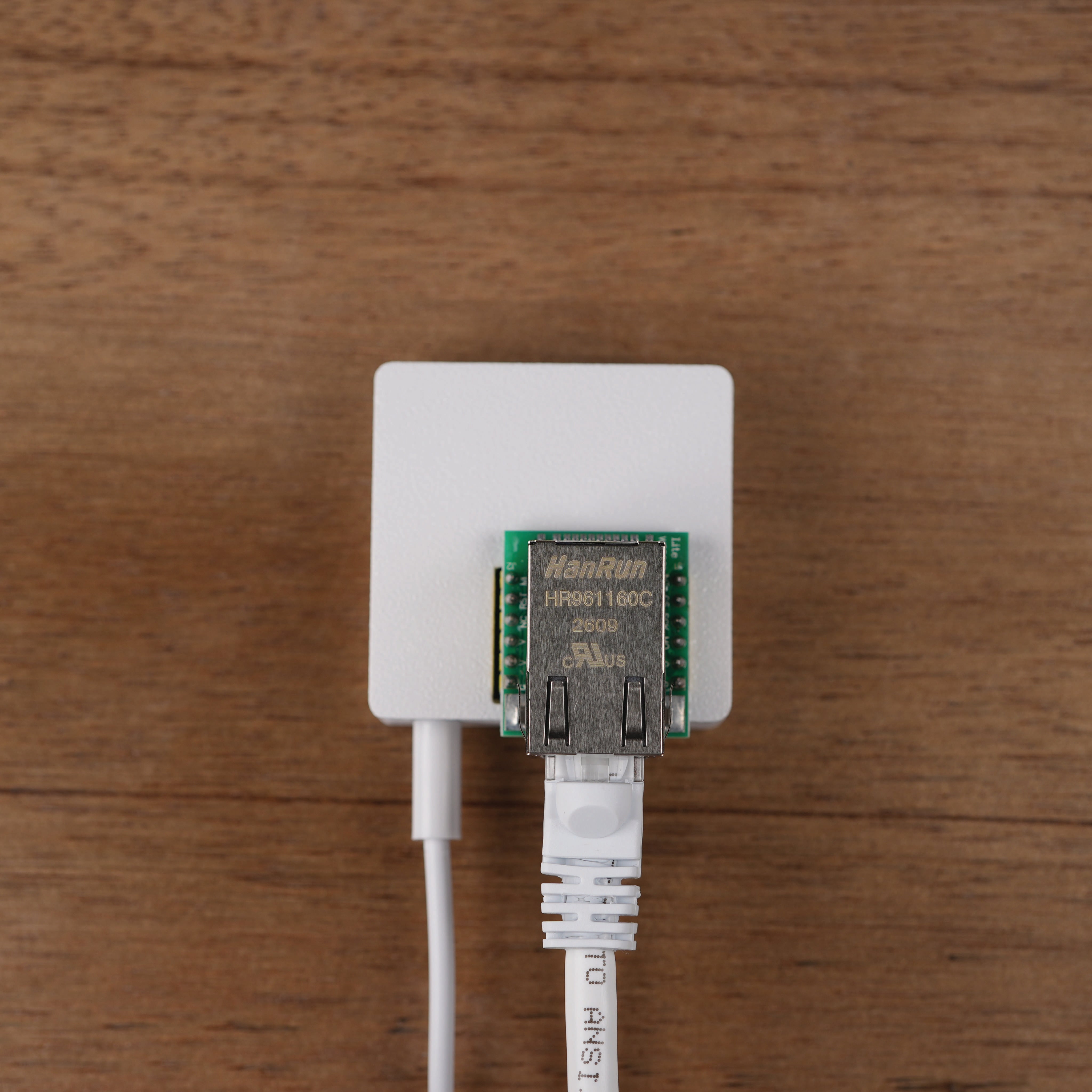

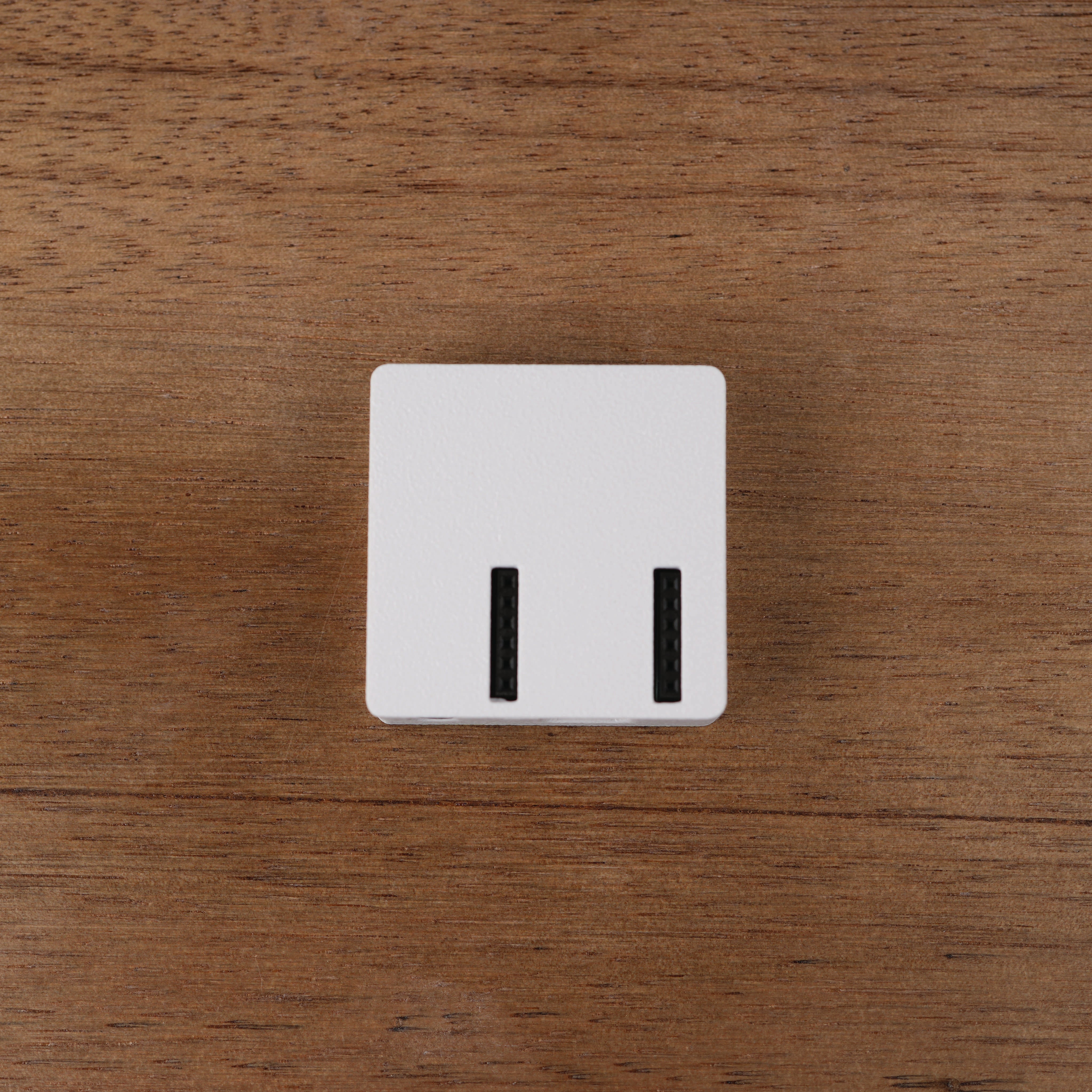

You can connect the CAST-1 over Wi-Fi or with the optional Ethernet HAT for a wired connection.

The CAST-1 also has an onboard RGB LED, acts as a Bluetooth proxy, and has GPIO available to connect an addressable RGB LED strip.
  • Revive a vintage hi-fi or bookshelf setup. Keep the speakers you love and give them streaming, multi-room sync, and voice control.
  • Whole-home synced audio on a budget. Add a CAST-1 to each room's existing speakers instead of buying a full set of smart speakers.
  • Home Assistant announcements on real speakers. Doorbell, laundry done, garage left open, delivered through the speakers already in the room.
  • Garage, workshop, and patio audio. Power from any USB adapter, wired Ethernet where Wi-Fi doesn't reach.
  • Reactive lighting. Wire an LED strip to the onboard 5 V, G, and IO1 pads and pulse it to whatever's playing.

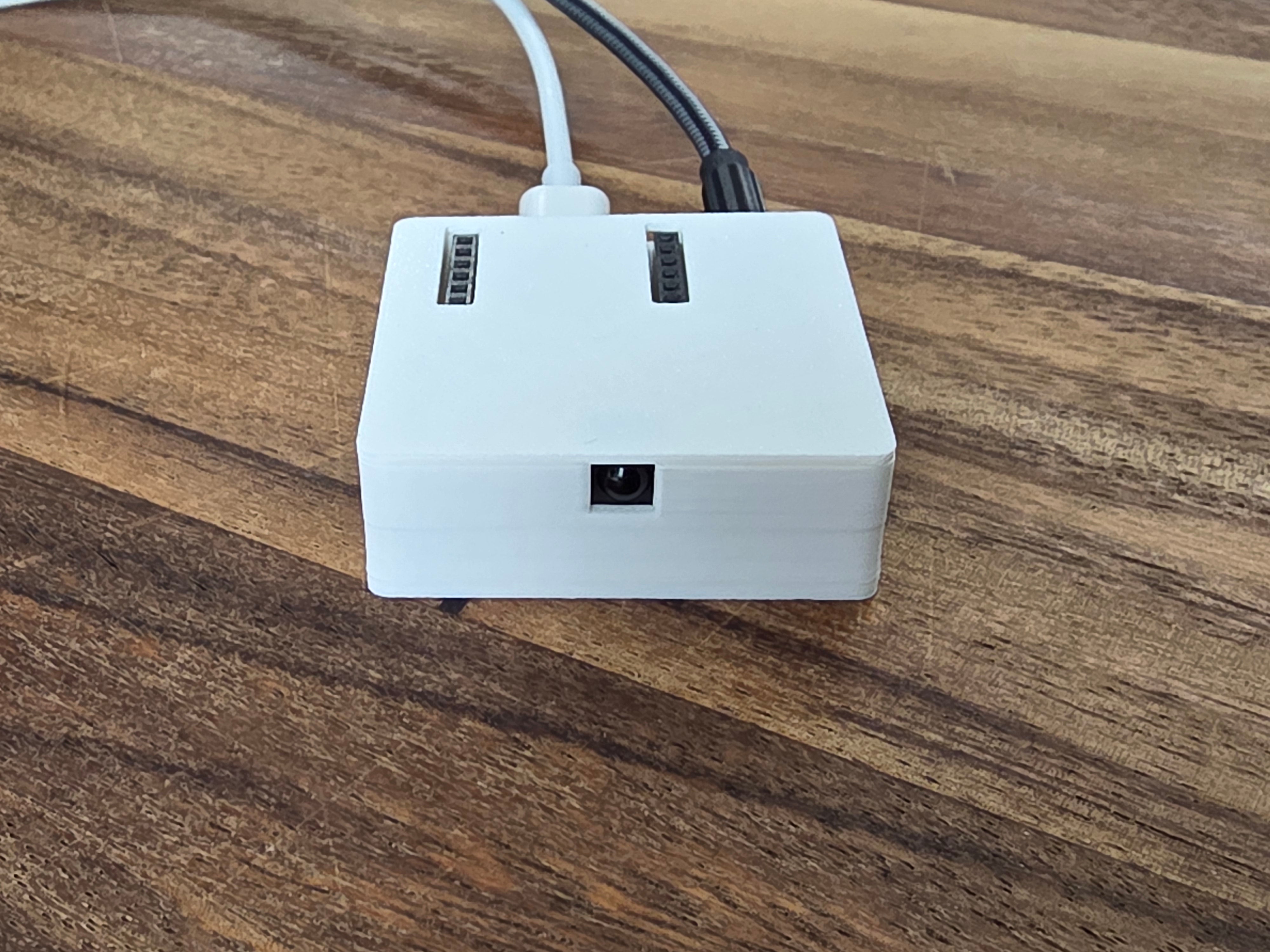

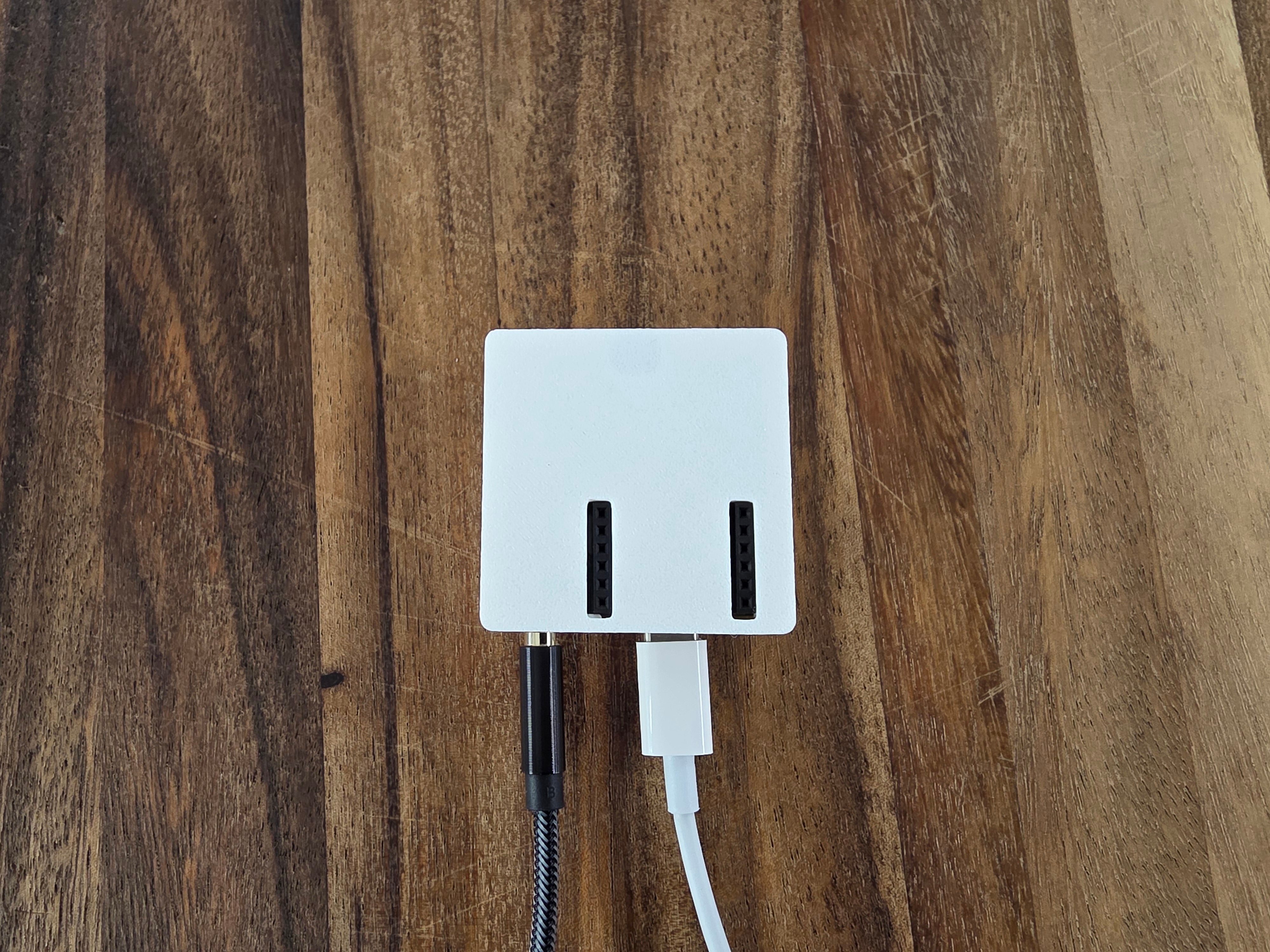

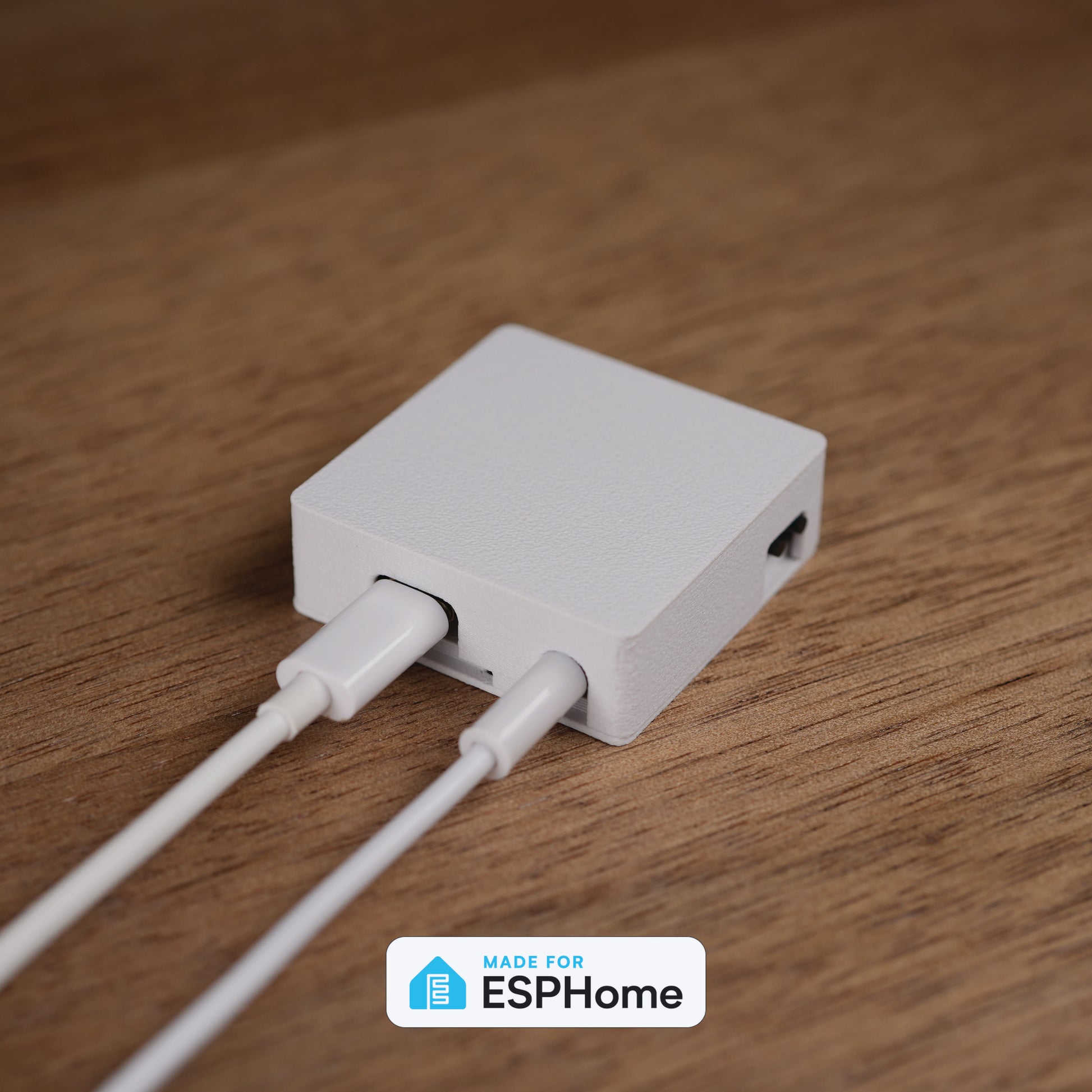

  • CAST-1 Audio Casting device with case

We hope to build a community on our Discord and continue delivering products the community wants. Our team will be there to help answer any questions, suggestions, or problems you might have.

Join our Discord.

Please see our Apollo Wiki for more information.

Product Details

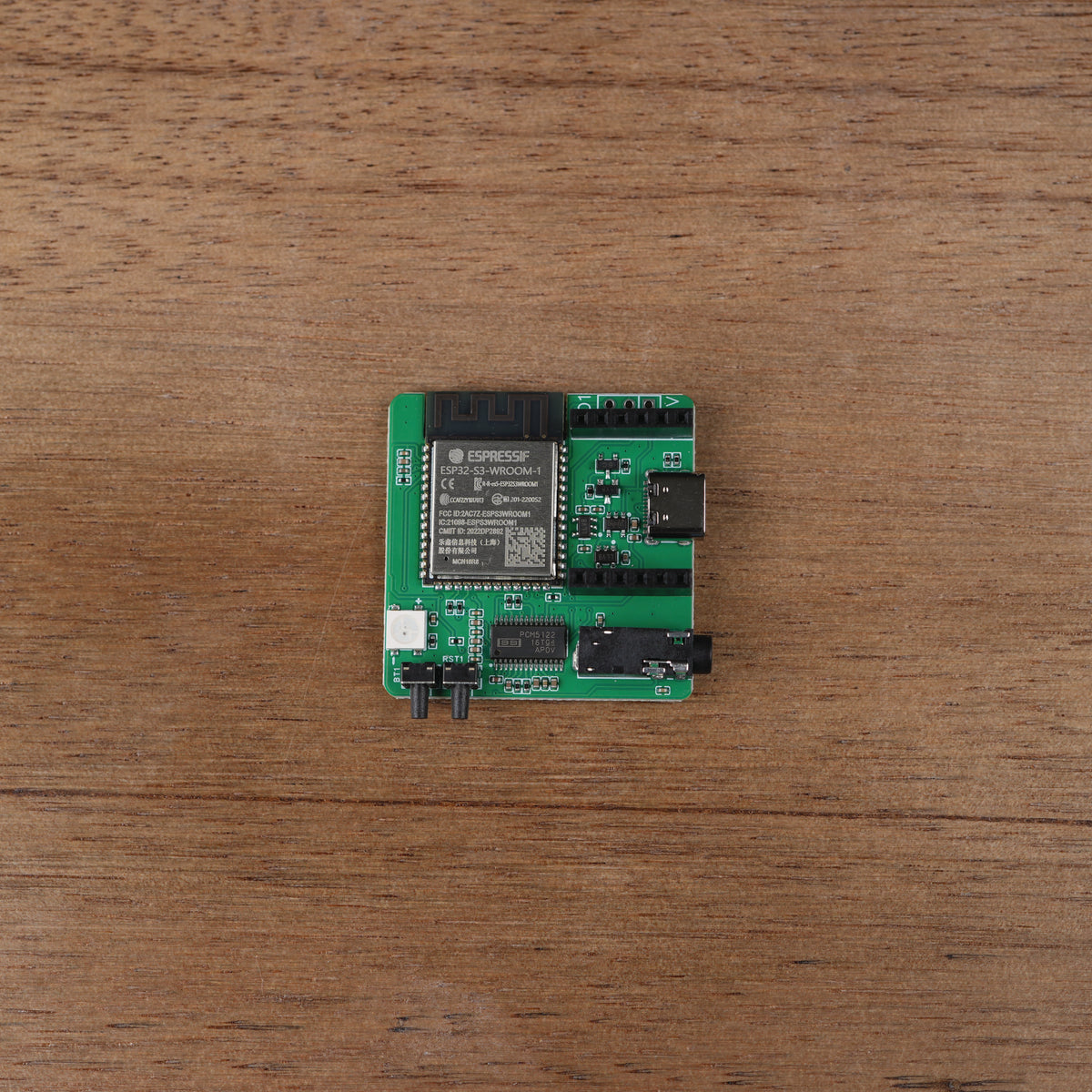

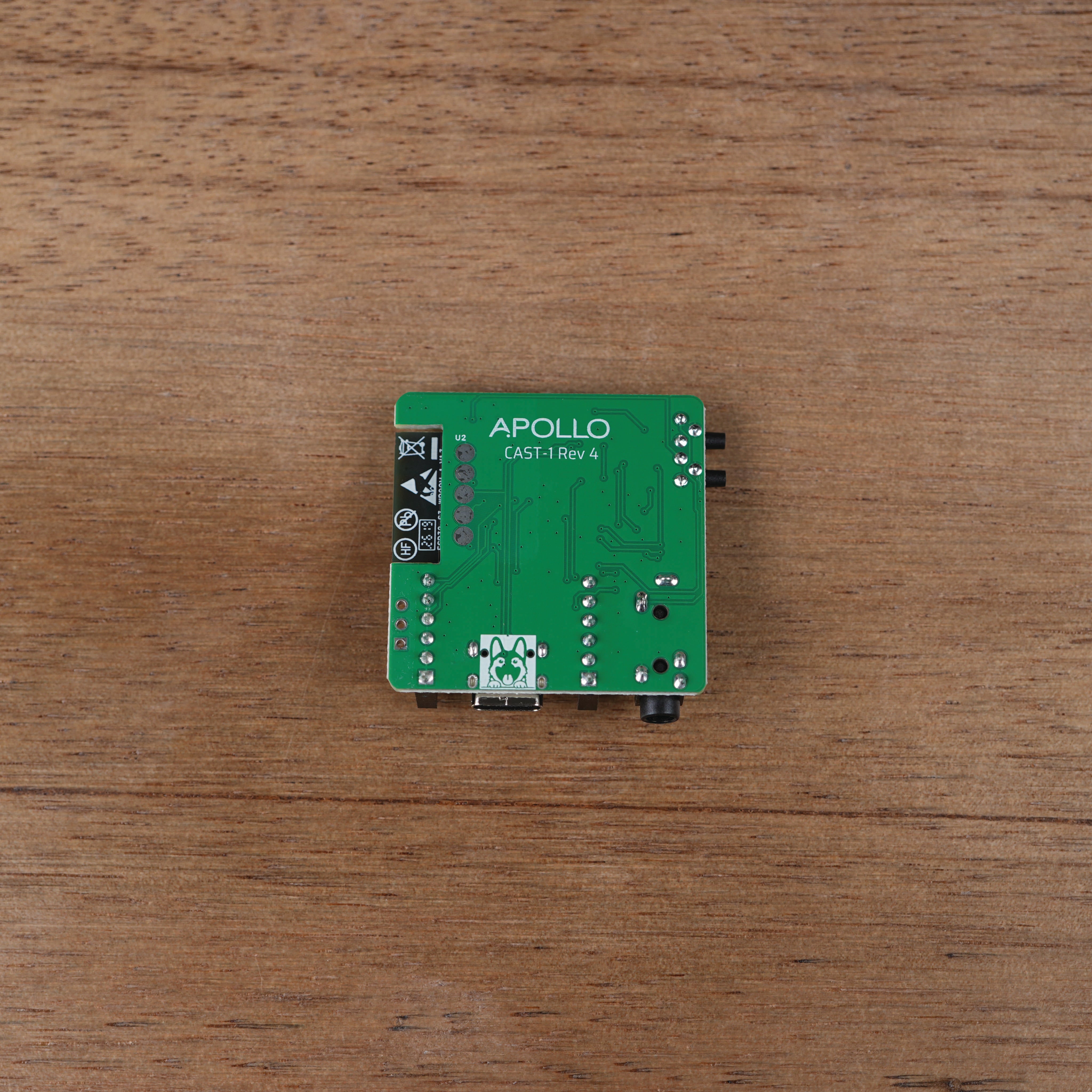

The CAST-1 uses the TI PCM5122, a 32-bit DAC, for the audio connection to your speaker. There are also exposed GPIO pins for connecting an addressable RGB LED strip if you'd like to add some lighting effects to your music.

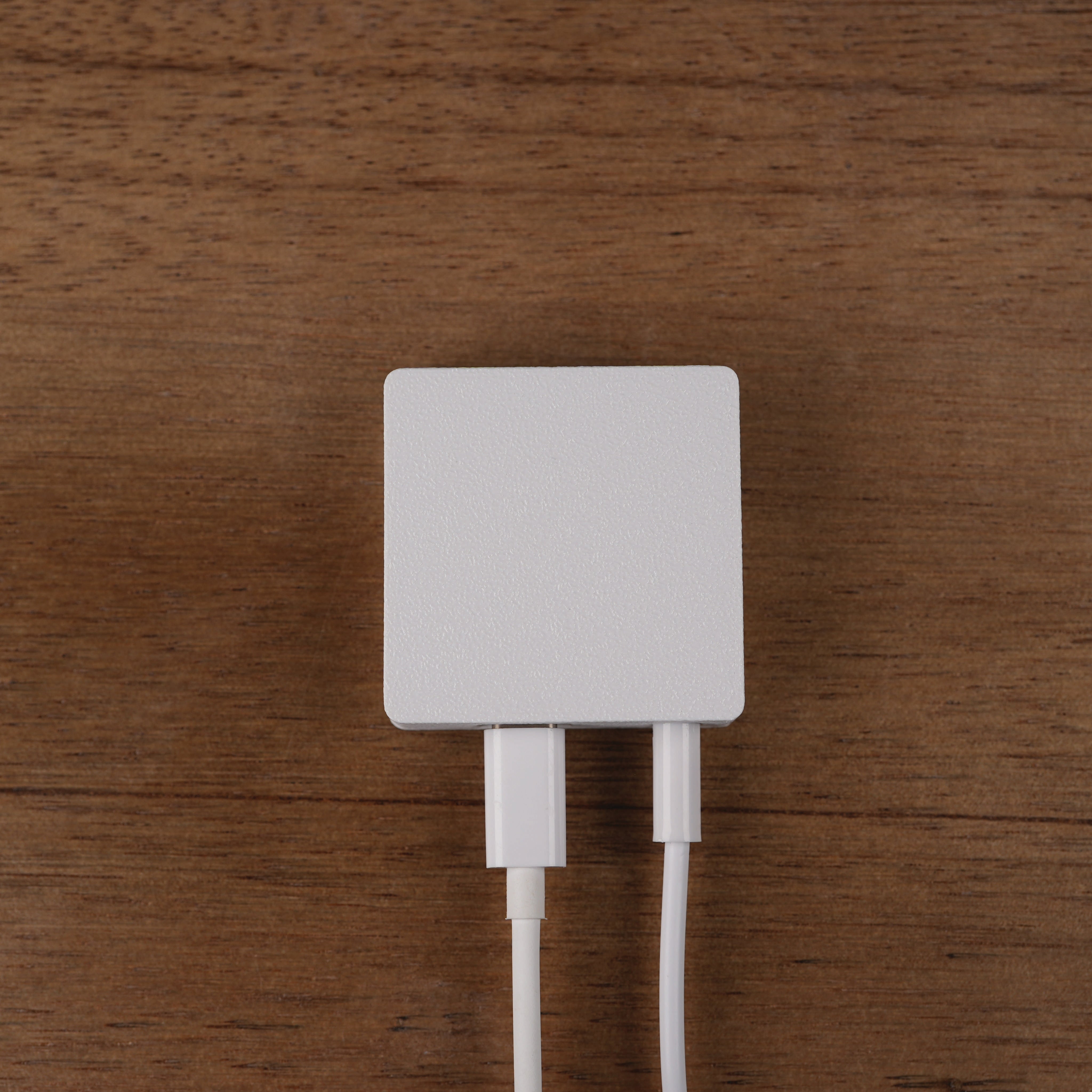

The CAST-1 is 45 x 45 x 15 mm, making it a tiny device that is easy to hide behind your audio equipment.

The firmware for the CAST-1 is completely open source, and you are able to modify and extend it yourself through the ESPHome add-on.

Specifications

  • Microcontroller: Espressif ESP32-S3 (16 MB flash, 8 MB PSRAM)
  • DAC: Texas Instruments PCM5122, 32-bit stereo, 112 dB SNR / dynamic range, -93 dB THD+N
  • Firmware: ESPHome (open source, locally controlled)
  • Audio output: 3.5mm analog line out, 2.1 VRMS full scale
  • Streaming protocols: Sendspin (Music Assistant native), ESPHome media player
  • Connectivity: Wi-Fi 2.4 GHz; Ethernet via optional Ethernet HAT (W5500)
  • Bluetooth: BLE, Home Assistant Bluetooth Proxy capable
  • Power: USB-C, 5 V 1 A

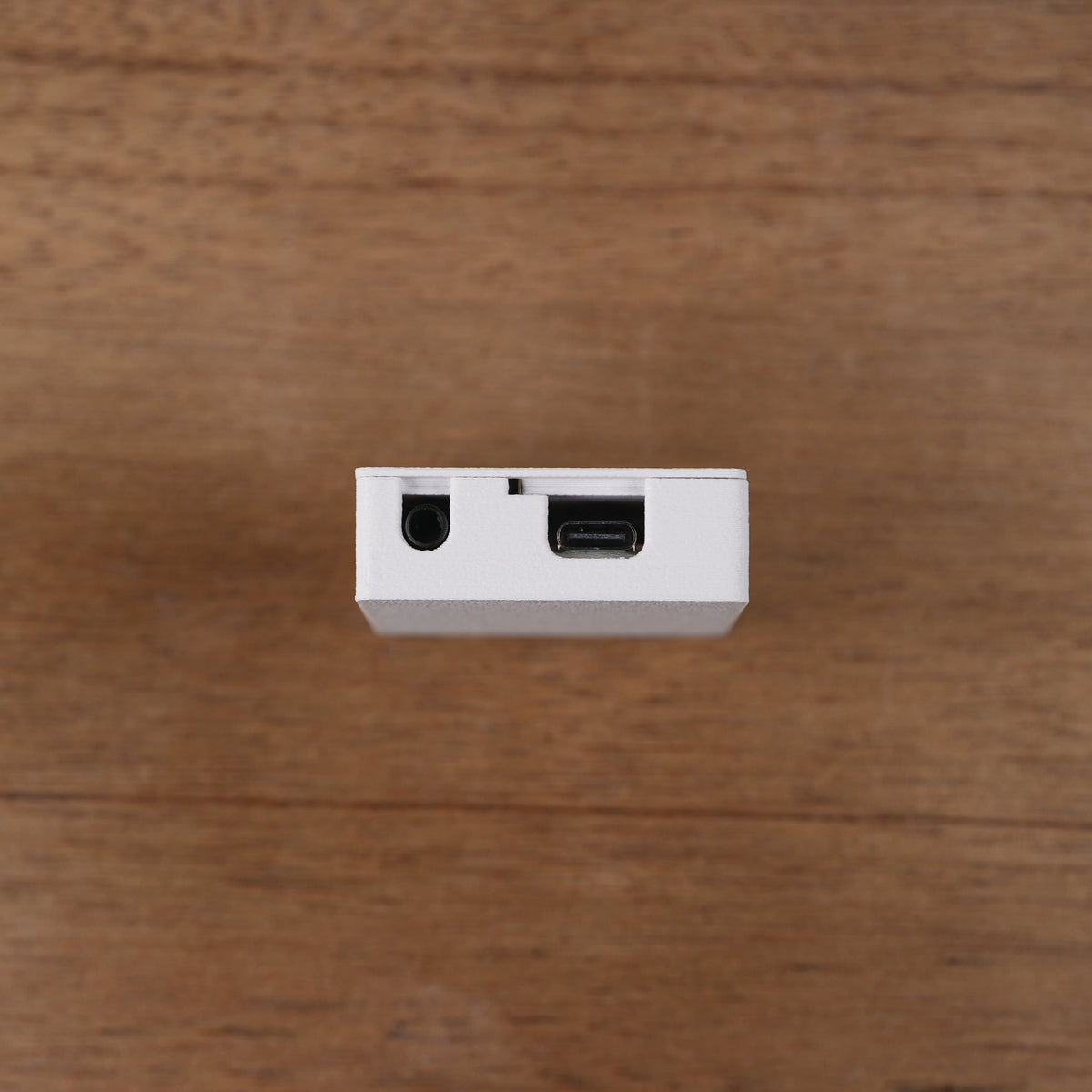

  • Ports: USB-C (power + programming), 3.5mm audio out
  • Expansion: Solder pads for 5 V, GND, IO1, for LED strips or external sensors
  • Indicators: RGB status LED
  • Dimensions: 45 x 45 x 15 mm (1.8 x 1.8 x 0.6 in)
  • Discovery: Automatic via mDNS in Music Assistant and Home Assistant
  • Cloud required: None, 100% local
  • Support: Wiki, Discord, GitHub
