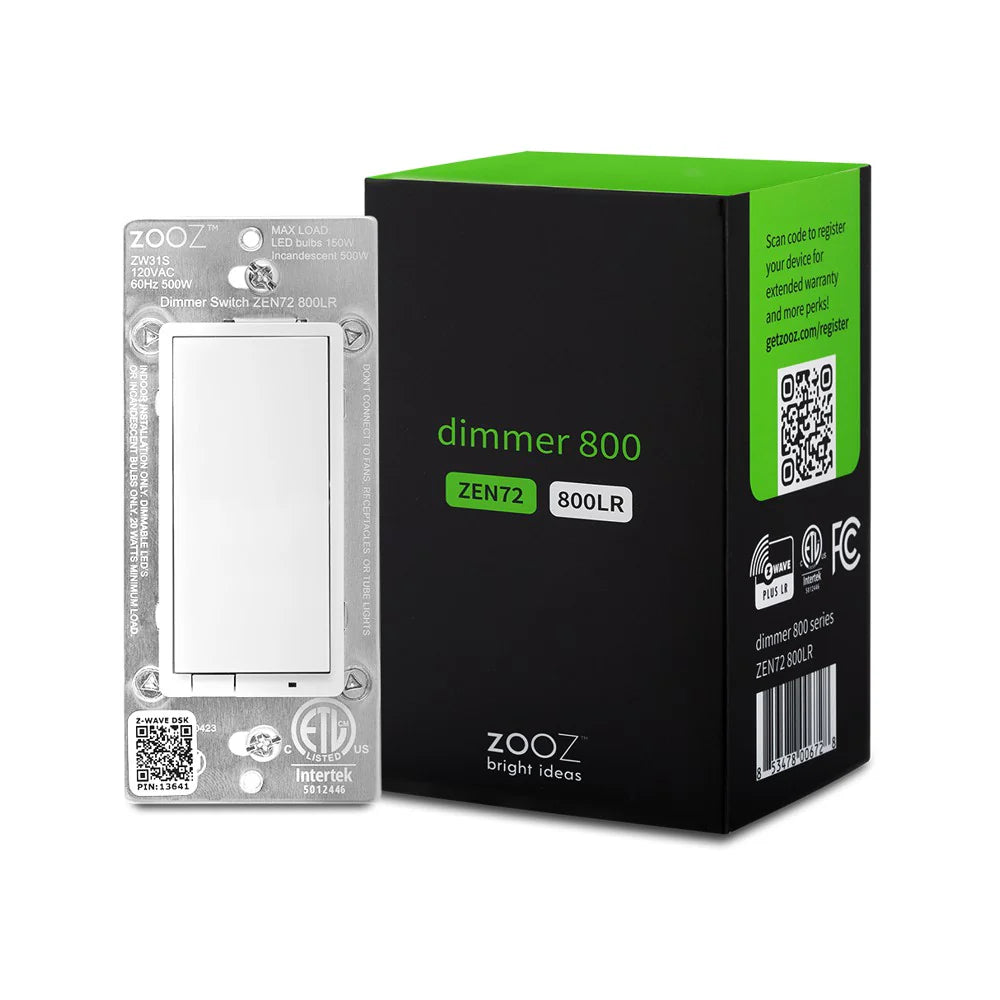

Zooz 800 Series Z-Wave Long Range Dimmer ZEN72 800LR

$31.95
$31.95
$44.95
Shipping calculated at checkout.
  • Full brightness control of your lights, from the physical dimmer and via Z-Wave when added to your smart home hub (sold separately)
  • NEW 800 chip:  more range, faster signal, SmartStart inclusion + S2 security
  • Z-Wave Long Range ready: extend the wireless coverage up to 1 mile if your hub supports Long Range

Bedroom mood lighting - Dim LED bulbs up to 100W
with customizable ramp rates and night light mode (press-hold lower paddle) for gentle nighttime illumination without full brightness

Living room scene automation - Use multi-tap
scene control to trigger different lighting moods (movie night,
entertaining, reading) and coordinate with other smart devices

Stairway/hallway dimming - Direct 3-way/4-way
support allows multi-point control with minimal rewiring, ideal for
staircases where you need control from multiple locations

Energy-efficient LED retrofit - Replace old
incandescent dimmers with modern TRIAC technology supporting
high-quality LEDs while extending Z-Wave LR range up to 1 mile in larger homes

Customized lighting control - Program
double-tap/single-tap functions for personalized actions, adjust min/max brightness levels, and choose LED indicator color/brightness to match your preferences

  • ZEN 72 wall switch
  • Manual

We hope to build a community on our Discord and continue delivering products the community wants. Our team will be there to help answer any questions, suggestions, or problems you might have.

Join our Discord.

Please see our Apollo Wiki for more information.

USA

UK

Europe

Product Details

  • What's the difference between the ZEN72 and the ZEN77 model? Read here!

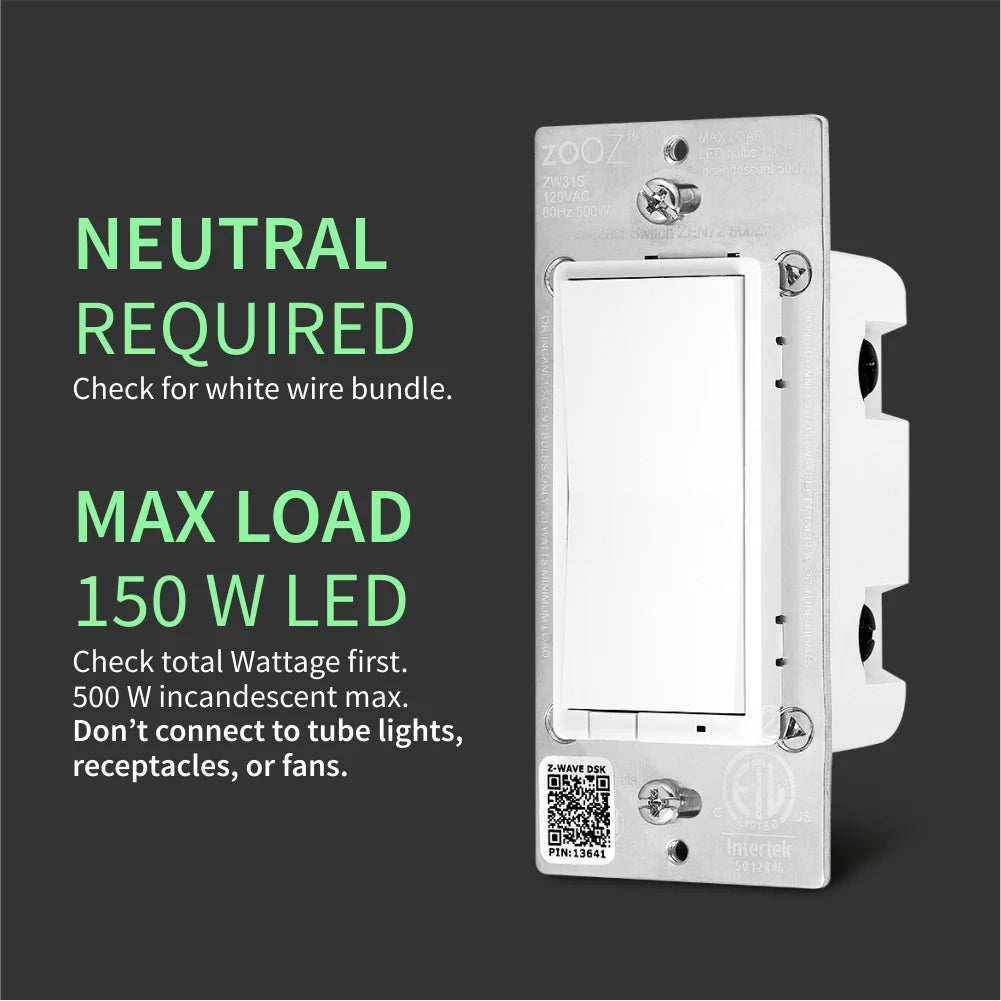

  • Works with any dimmable LED bulb that accepts triac (forward-phase) dimmers up to 150 W total and with any incandescent bulbs up to 500 W. NOT COMPATIBLE WITH LUMINUS, LITHONIA, OR FEIT BULBS.

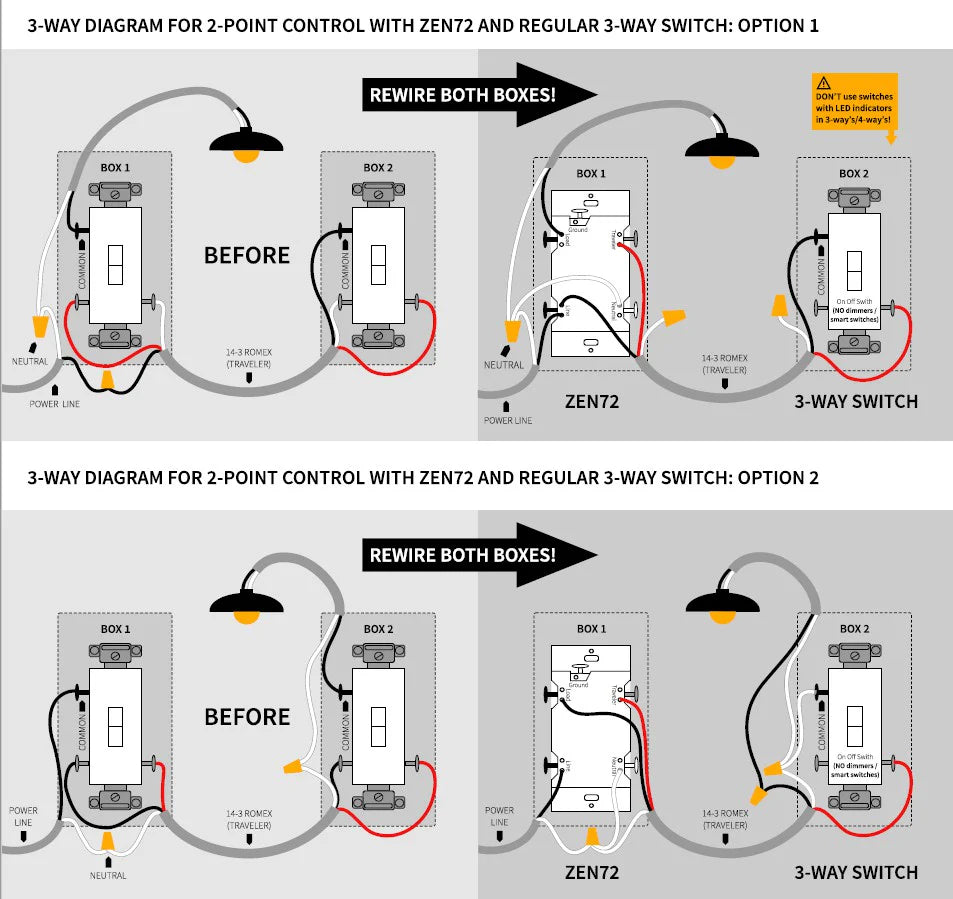

  • Direct 3-Way Solution: connects to an existing light switch for 2-point control, no add-on switch necessary! Wires just like the ZEN22 model. Neutral wire required, on/off control only from the secondary switch, use in 4-way installations only if you have direct connection to load and line in one box.
  • Replaceable paddles: Check out paddle options here.

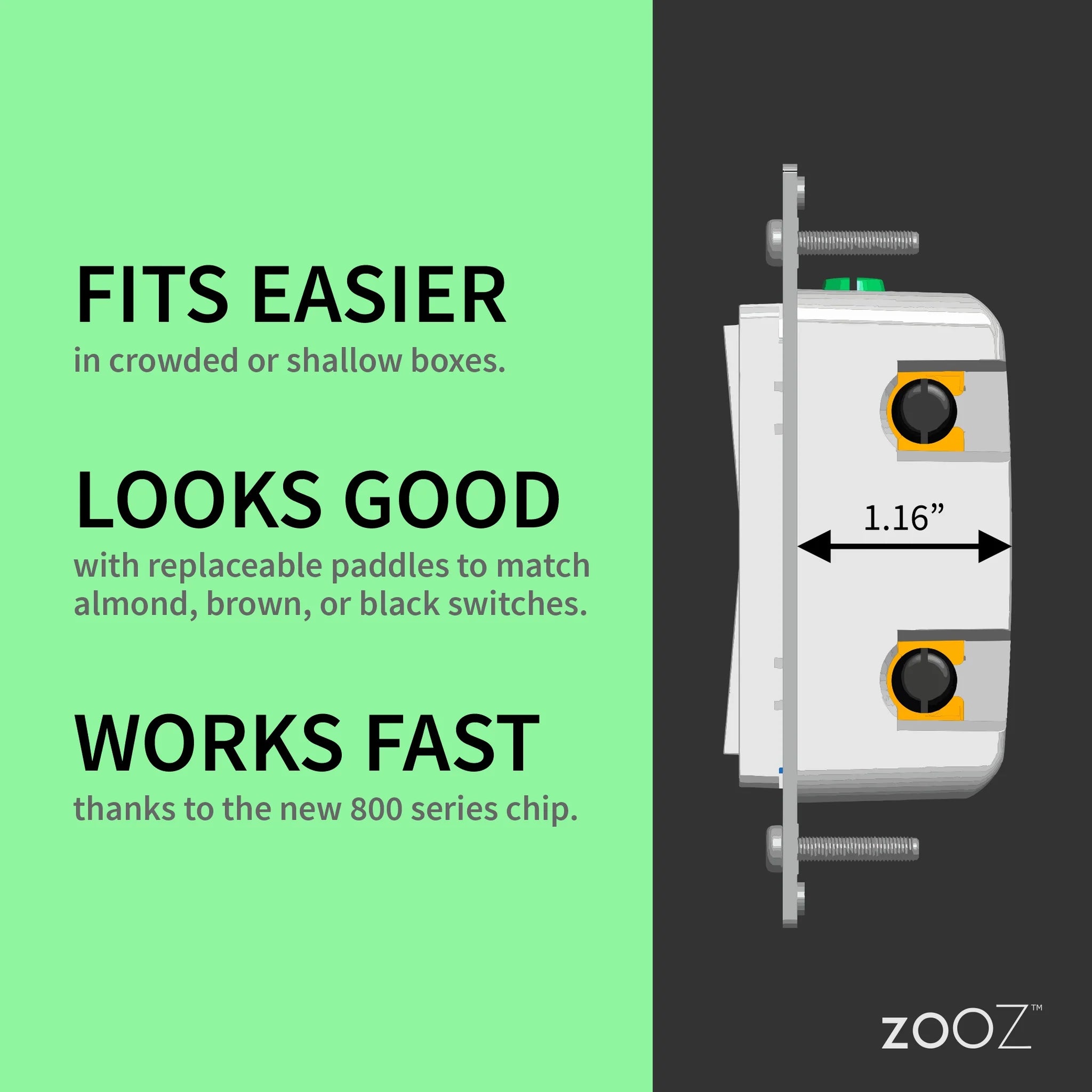

  • Small profile (just 1.1" deep) to fit easily in a crowded or shallow box
  • Adjustable LED indicator: choose the color and brightness that works for you!
  • Scene control: multi-tap triggers available on select hubs*

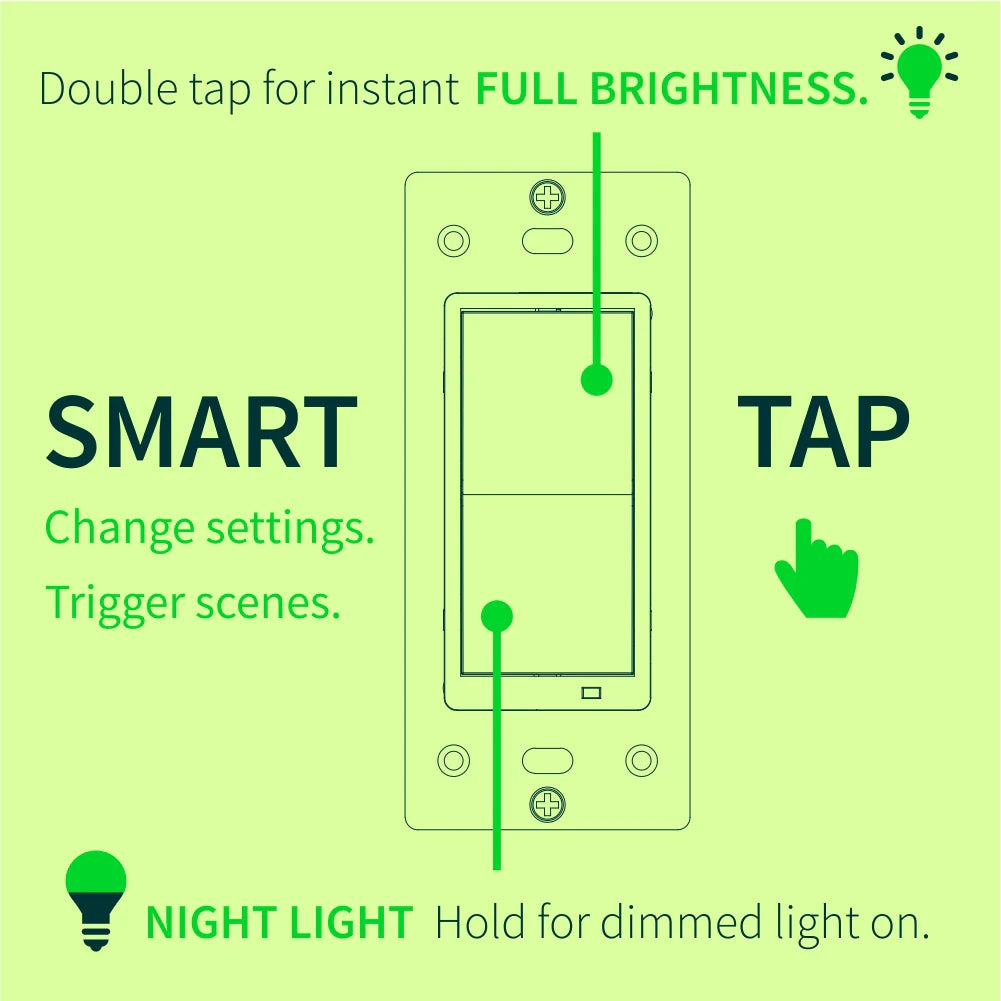

  • Night Light Mode: press and hold the lower paddle when dimmer is off to turn the light on to low brightness
  • Double tap to full brightness: now fully adjustable double tap and single tap behavior*
  • Fully adjustable ramp rate*
  • Don't use with fan motors, halogen bulbs, transformers, receptacles, or tube lights!
  • Stronger signal repeater for a more reliable Z-Wave network
  • NEW: YOU choose the color and brightness level of the LED indicator*
  • Fits a standard-size face plate for single and multi gang installations (face plate not included)
  • Lifetime tech support and 5-year extended warranty once registered
  • Check out Zooz Light Switches & Dimmers Frequently Asked Questions

NOTE: Z-Wave gateway controller required - sold separately.
*Your hub needs to support advanced parameter input to display these features.

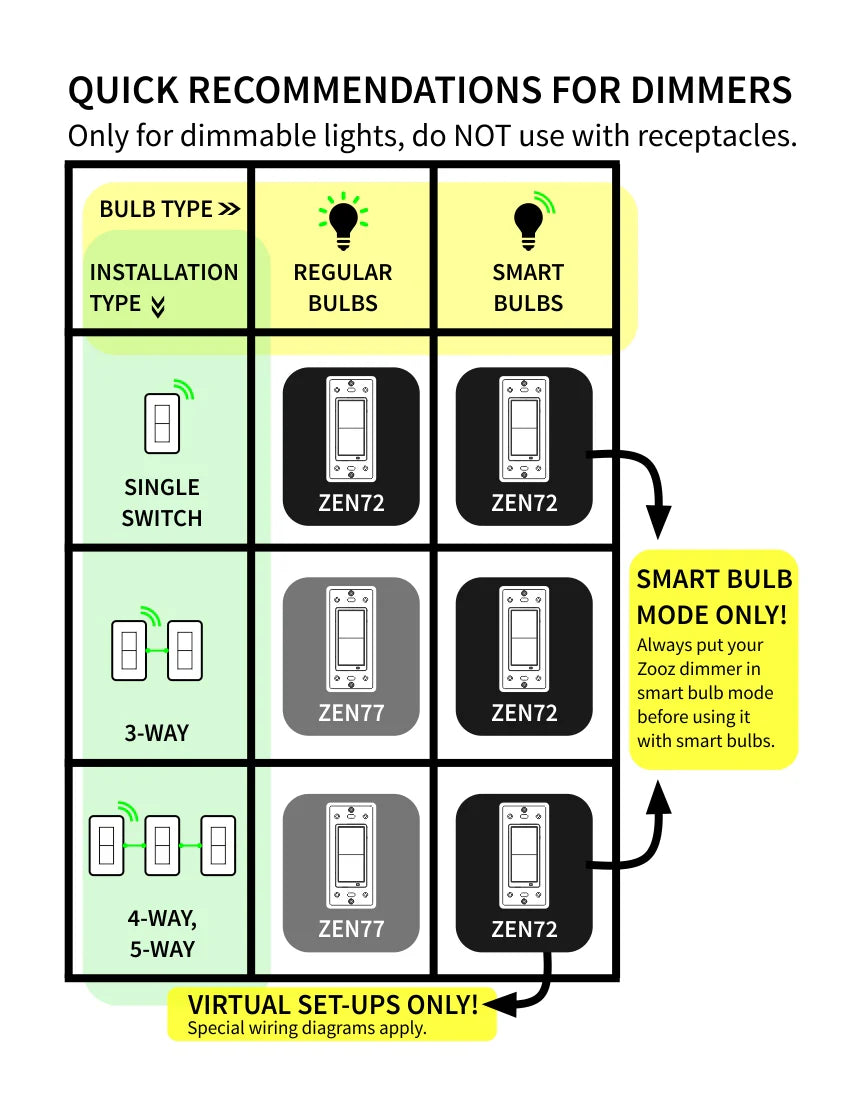

Not sure which dimmer model to choose?   Read a guide to Zooz switches here!

SPECIFICATIONS
  • Z-Wave Region: US/MX/CA
  • Hardware Version: 4.0
  • Power: 120 VAC, 60 Hz
  • Maximum Loads: 500W Incandescent, 150W LED
  • Range: Up to 200 feet line of sight, up to 1 mile with Z-Wave Long Range enabled (your Z-Wave hub needs to support that feature)
  • Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
  • Operating Temperature: 32-104° F (0-40° C)
  • Installation and Use: Indoor only

RESOURCES

Download the Manual for the Zooz 800 Series Z-Wave Log Range Dimmer ZEN72 800LR (PDF)

More wiring diagrams for 3-way and 4-way set-ups

Zooz Light Switches & Dimmers Frequently Asked Questions

Advanced Settings

Support Portal

WORKS WITH

  • Z-Box Hub (recommended for Zooz products)
  • 2GIG (no advanced settings or scene control)
  • ADT Pulse (no advanced settings or scene control)
  • Fibaro Home Center 2
  • Fibaro Home Center Lite
  • Home Assistant (Z-Wave JS)
  • HomeSeer (with Z-Wave Plus plug-in)
  • Homey (Zooz App for Homey)
  • Hubitat
  • InControl
  • Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
  • ISY994Zw
  • Open Z-Wave
  • Ring (no advanced settings or scene control)
  • SmartThings (click here to access the custom lua driver for advanced functionality)
  • Staples Connect DLink (no advanced settings - on/off control only)
  • Wink and Wink 2 (no advanced settings)

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product. NOT SUPPORTED BY VIVINT.
