Zooz 800 Series Z-Wave Long Range Double Switch ZEN30 800LR (White) for Light & Fan Combo

Regular price: $34.95
Sale price: $34.95
Regular price: ~~$44.95~~

Shipping calculated at checkout.

Z-Wave Plus Dimmer (up to 75 W LEDs and 250 W incandescent) and On/Off Relay in one
The first Z-Wave double wall switch! Here are some ideas for how to use it in your smart home.
Direct replacement for fan / light combo switches or other double switches in your home
NEW 800 chip: more range, faster signal, SmartStart inclusion + S2 security
Z-Wave Long Range ready: extend the wireless coverage up to 1 mile if your hub supports Long Range

Ceiling fan/light combo control - Replace traditional dual switches with single-gang solution controlling fan motor (relay) and dimmable light separately, saving wall space and wiring complexity

Bathroom exhaust fan automation - Dim vanity lights while controlling exhaust fan independently, automate fan shutoff after humidity clears or set timers for post-shower ventilation

Smart bulb scene controller - Use relay in smart bulb mode to maintain power while dimmer paddle triggers up to 18 scenes for wireless lighting control without cutting power

Kitchen task/ambient lighting - Control dimmable recessed lights and non-dimmable under-cabinet LED strips from one switch, perfect for separating task and mood lighting

Garage/workshop dual control - Dim main LED shop lights while independently controlling exhaust fan, compressor outlet, or secondary lighting circuit with 15A relay capacity

Wall switch
Wire nuts
Installation manual

We hope to build a community on our Discord and continue delivering products the community wants. Our team will be there to help answer any questions, suggestions, or problems you might have.

Join our Discord.

Please see our Apollo Wiki for more information.

Product Details

DIMMER: double tap to full
brightness, custom brightness level on, adjustable ramp rate and dimming
speed, and more great features you've known Zooz for!*
RELAY: on/off control only, use it with ceiling fans or
exhaust fans, built-in overload protection, dry contact relay for more
creative applications, no load necessary so you can use it as a virtual
switch or scene controller.
Scene Control (select hubs only): trigger up to 18 scenes or control up to 18 devices with multi-tap control.*
Smart bulb ready: use scene control or simple automations to easily program smart bulb control with this switch without cutting power to them

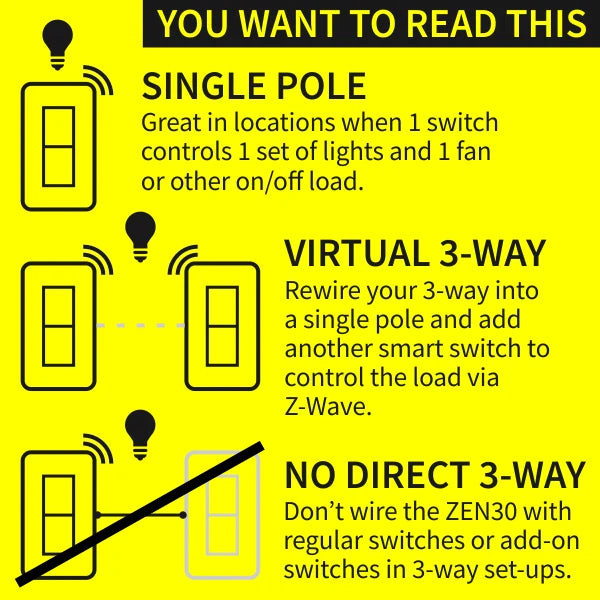

NO DIRECT 3-WAY: use in single pole set-ups only.
Can be used in virtual 3-way's without any direct connections to the other switches in 3-way and 4-way installations. Contact us for details.
Adjustable LED indicator: choose from 4 colors and 3 brightness levels

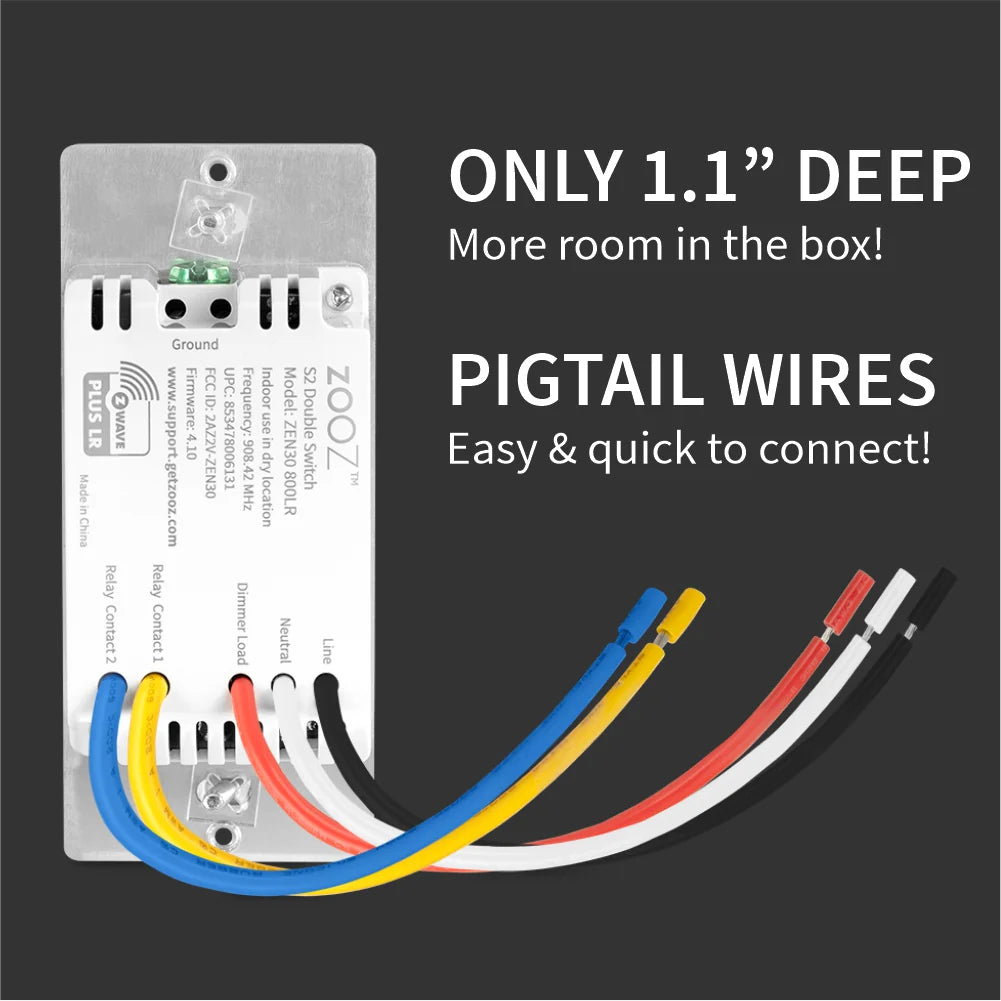

Quick Installation: pigtail wires (wire nuts included), only 1.1" deep and no heatsink tabs for an easy fit
White (no other color available - currently no plans for other colors)

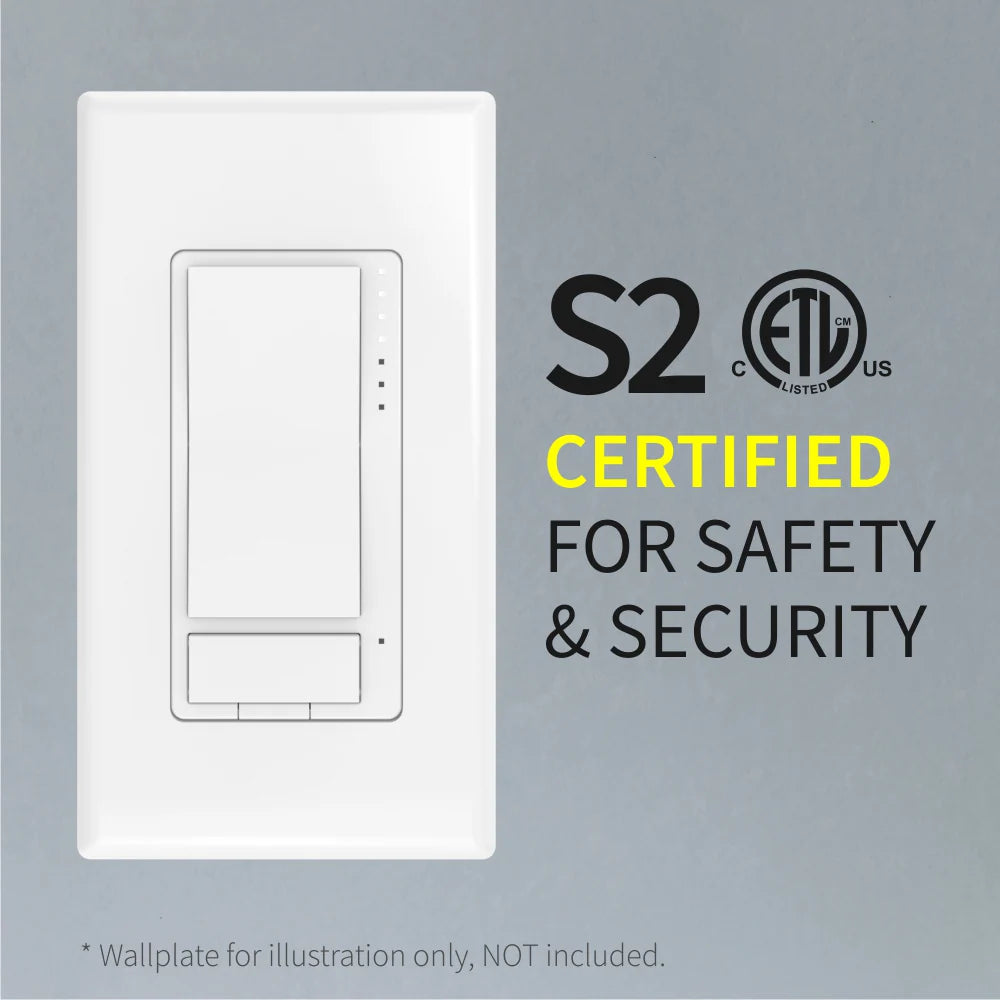

S2 security with SmartStart for safer wireless communication
OTA firmware updates for a future-proof device
Built-in signal repeater to boost your Z-Wave network
Restores status after power failure
Air-gap switch for added safety
Use a standard-size wall plate for single gang installations (wall plate not included)
5-year warranty and lifetime tech support
Check out ZEN30 Frequently Asked Questions

NOTE: Z-Wave gateway controller required -
sold separately. *Your hub needs to support advanced parameter input to
display these features.

SPECIFICATIONS

Z-Wave Frequency: 908.42 MHz (US)
Power: 120 VAC, 60 Hz
Z-Wave Chip: 800 Series (800LR only)

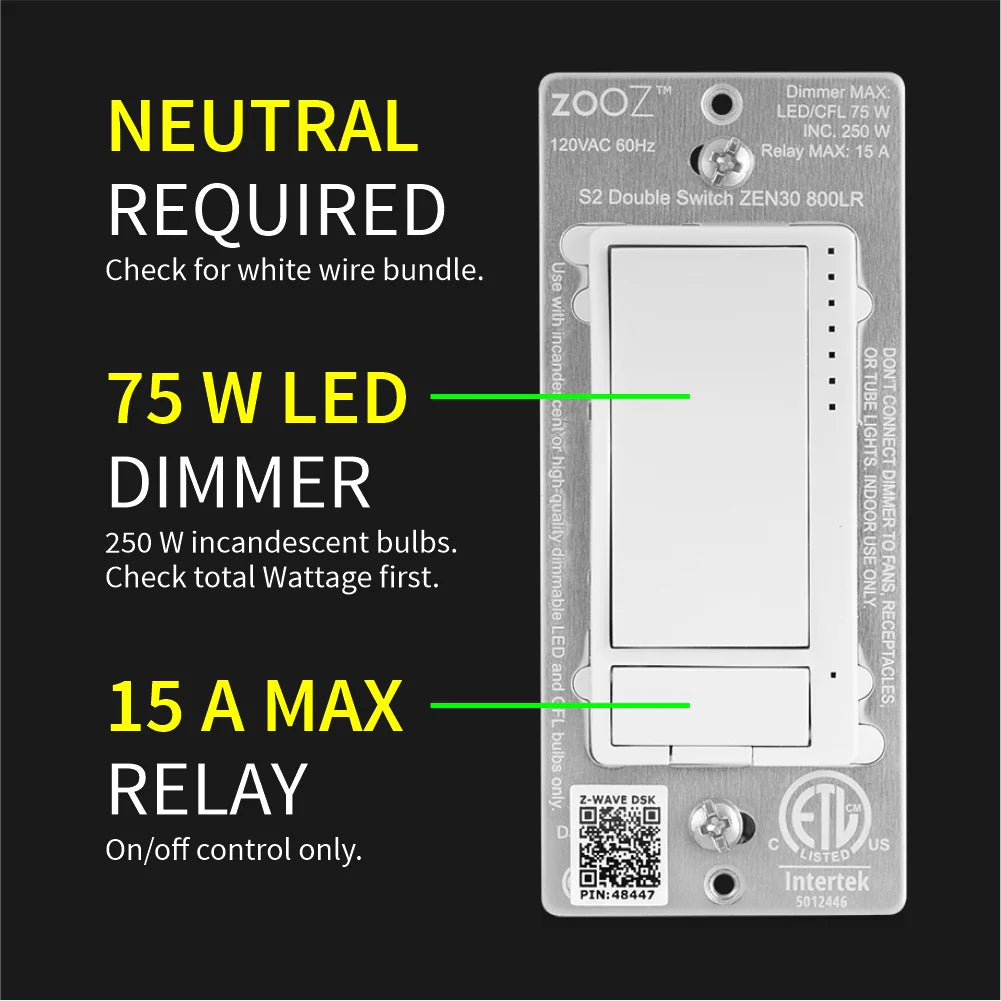

Maximum Load for Dimmer: 75 W LED, 250 W incandescent (don't use with tube lights, chandeliers, switched receptacles, or fans)
Maximum Load for Relay: 15 A
Z-Wave Range: Up to 100 feet line of sight
Operating Temperature: 32-104° F (0-40° C)
Dimensions: 1.7" x 4.1" x 1.1"
Installation: Indoor use only
