• Z-Wave
Zooz

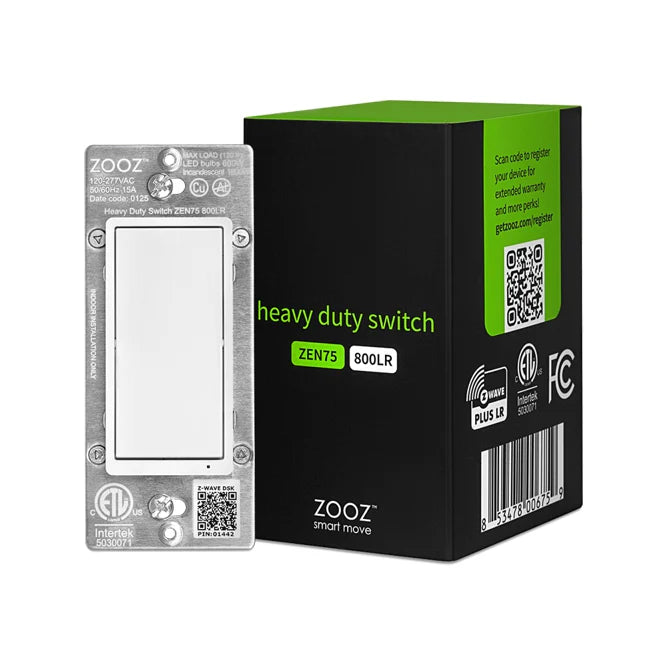

Zooz 800 Series Z-Wave Long Range Heavy Duty Wall Switch ZEN75 800LR

$38.95
$38.95
$49.95
Shipping calculated at checkout.
  • Easily control your lights, fans, receptacles, and motors via a wall switch or wirelessly with Z-Wave technology
  • Great for large LED installations (up to 600 Watts) and fans (no speed control)
  • Works as a controller (not a disconnector as one leg remains hot when off) for 240 V and 277 V commercial applications such as well pumps, HVAC equipment, motors, ballast lighting, and more. If complete power disconnection is required for servicing, an external disconnect switch should be installed.
  • Learn more about supported loads here
  • This switch delivers instant on/off control (for dimming, check out our Z-Wave dimmer)
  • 800 Series Z-Wave Chip: faster signal transmission, extended range, SmartStart inclusion, and S2 security for a seamless smart home experience
  • Z-Wave Long Range ready: Expand wireless coverage up to 1300 feet with a compatible hub

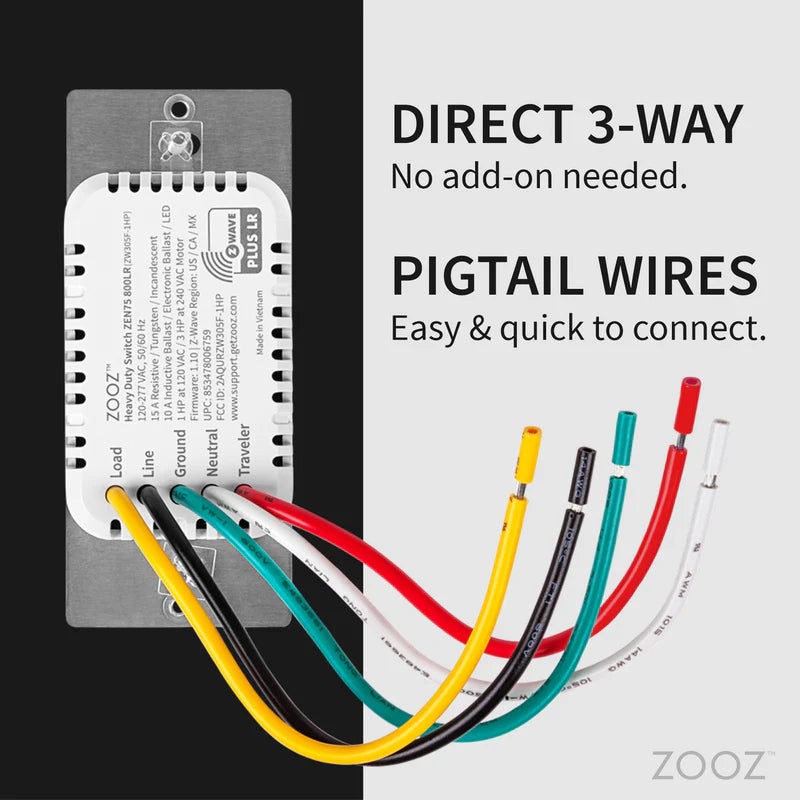

  • Direct 3-Way Solution: no add-on switch required! Works like the ZEN71 model (neutral wire needed, 4-Way wiring possible if direct connection to load and line are in the same box, check before buying)
  • It's perfect for simple single pole installations too!
  • Use with a standard-size decora wall plate (not included)

Workshop/garage lighting - Control high-wattage LED arrays up to 600W for bright workspace illumination with extended Z-Wave LR range to detached buildings

Well pump automation - Manage well pumps up to 1HP at 120V or 3HP at 240V with smart scheduling and remote control capabilities

Commercial HVAC/motor control - Operate 240V/277V equipment like ballast lighting, motors, and HVAC systems with scene control triggers for facility automation

Pool/spa pump scheduling - Automate pump cycles with energy-efficient timers and power failure recovery to maintain last status after outages

Smart bulb compatibility mode - Disable relay to maintain power for wireless smart bulbs while using multi-tap scene control as a remote switch for home automation routines

  • Wall switch
  • Wire nuts
  • Installation manual

We hope to build a community on our Discord and continue delivering products the community wants. Our team will be there to help answer any questions, suggestions, or problems you might have.

Join our Discord.

Please see our Apollo Wiki for more information.

Product Details

Smart Home Integration & Customization

  • Adjustable LED indicator: customize color and brightness that works for you
  • Built-in range test tool: quickly diagnose network connectivity issues directly from the switch
  • Scene control support: activate smart home routines via multi-tap triggers*
  • Smart bulb mode: disable the relay for wireless smart lighting control or use it as a remote add-on switch

Reliable & Energy-Efficient Performance

  • Power Failure Recovery: restores last on/off status automatically
  • Compatible with LED and incandescent bulbs (NOTE: FEIT bulbs are not recommended)
  • Control well pumps and pool pumps up to 1HP at 120 V (or up to 3 HP at 240 V)
  • Suitable for tube lights with ballast, shop lights, and halogen bulbs (up to 350 W)
  • Stronger Signal Repeater: improves your Z-Wave mesh network performance.
  • 5-year extended warranty (register your product here) and lifetime tech support
  • Check out the Zooz Heavy Duty Light Switch ZEN75 Frequently Asked Questions

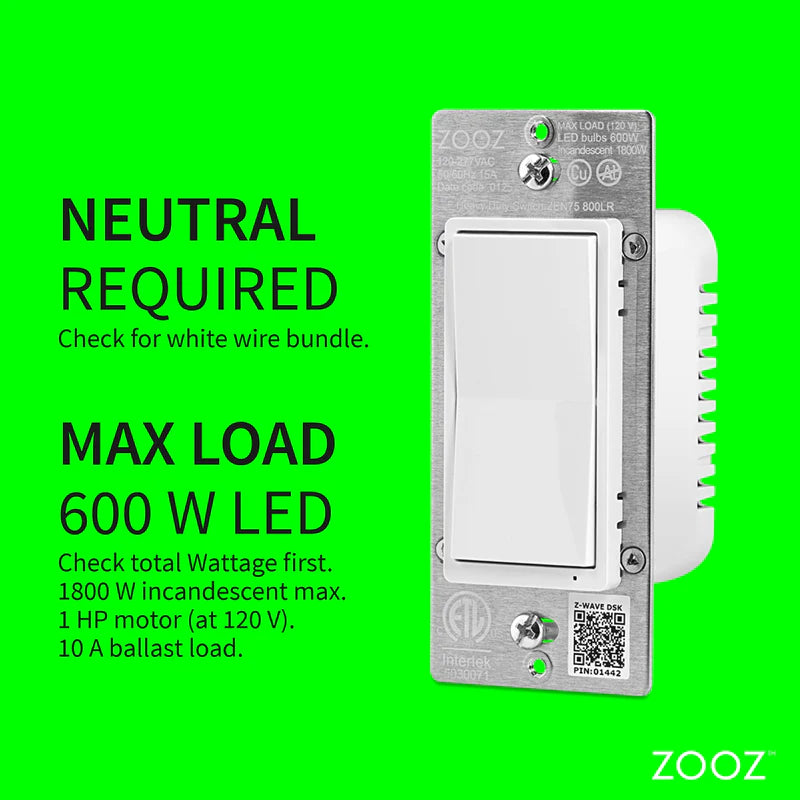

NOTE: Z-Wave gateway controller required -
sold separately. *Your smart hub / controller needs to support advanced
settings for you to take advantage of this feature.

SPECIFICATIONS

  • Z-Wave Region: US/MX/CA
  • Power: 120-277V AC, 50/60 Hz

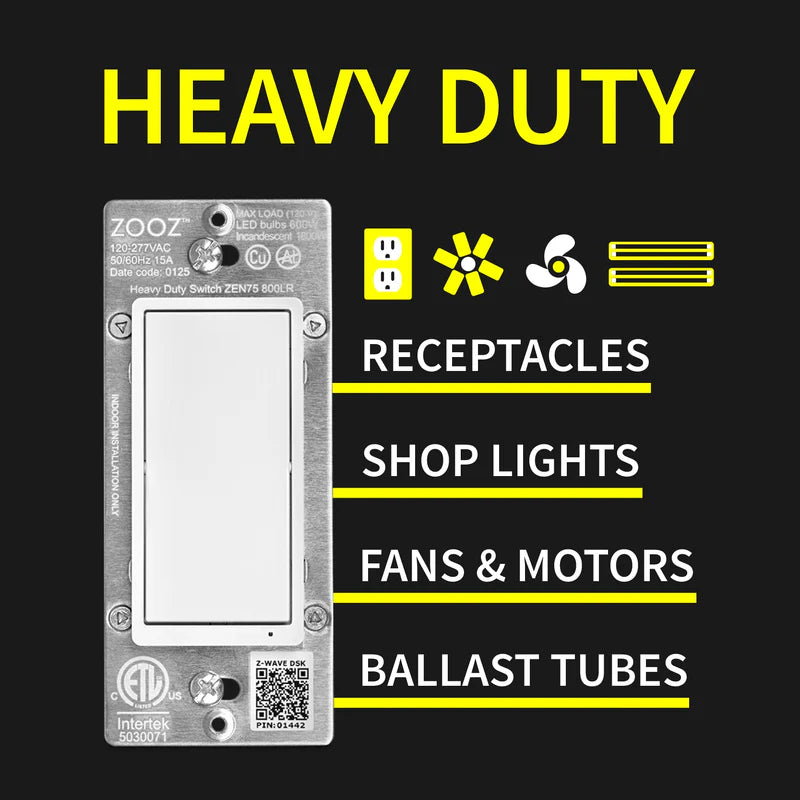

  • Maximum Loads (read more about supported loads here):
    600W LED
    1800W Incandescent
    15 A Resistive / Tungsten / Incandescent
    10 A Inductive Ballast / Electronic Ballast / LED
    1 HP at 120 VAC Motor / 3 HP at 240 VAC Motor
  • Z-Wave Range: Up to 200 feet line of sight between the
    hub and the closest Z-Wave receiver module, up to 1300 feet with Z-Wave
    Long Range enabled (your Z-Wave hub needs to support that feature)

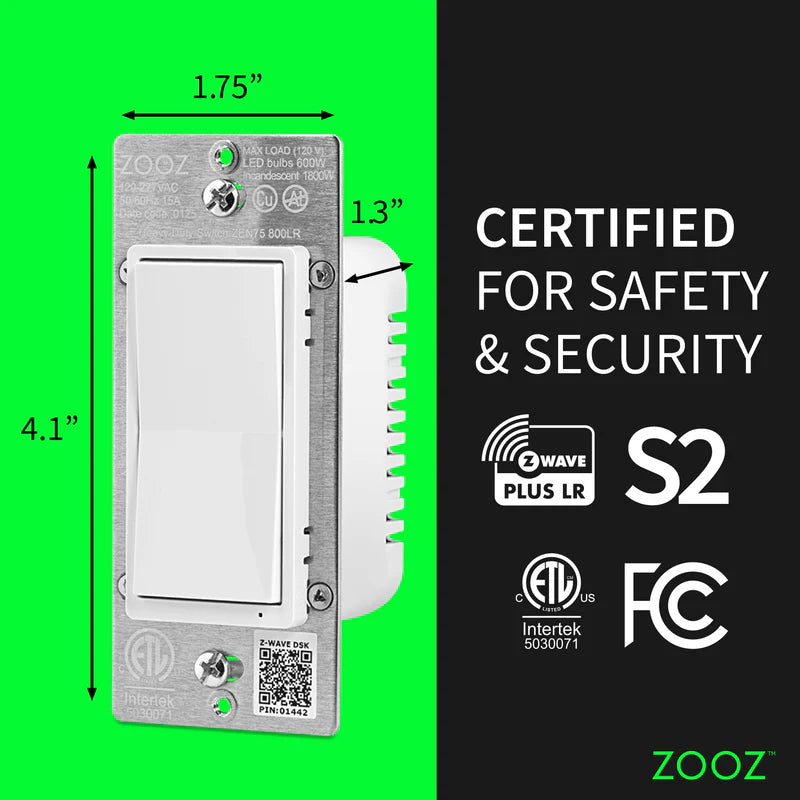

  • Dimensions: 1.3" deep, 1.75" wide, 4.1" tall
  • Operating Temperature: 32-104° F (0-40° C)
  • Installation: Indoor use only

RESOURCES

Download the the manual for the Zooz Z-Wave Long Range Heavy Duty Switch ZEN75 800LR (PDF)

Zooz Heavy Duty Light Switch ZEN75 Frequently Asked Questions

Advanced Settings

Support Portal

WORKS WITH

  • Z-Box Hub (recommended for Zooz products)
  • 2GIG (no advanced settings or scene control)
  • ADT Pulse (no advanced settings or scene control)
  • Home Assistant (Z-Wave JS)
  • HomeSeer (with Z-Wave Plus plug-in)
  • Homey (Zooz App for Homey)
  • Hubitat
  • Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
  • ISY
  • Ring (no advanced settings or scene control)
  • SmartThings Hub (custom lua driver for advanced functionality coming soon)

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.
