Zooz 800 Series Z-Wave Long Range On / Off Light Switch ZEN71 800LR

• Direct 3-Way Solution: no add-on switch needed, wires
  just like the ZEN21 model (Neutral required, 4-Way wiring possible if direct connection to load and line are in the same box, check before buying)
• Replaceable paddles: light almond and black paddles available here
• Works well in simple single pole installations

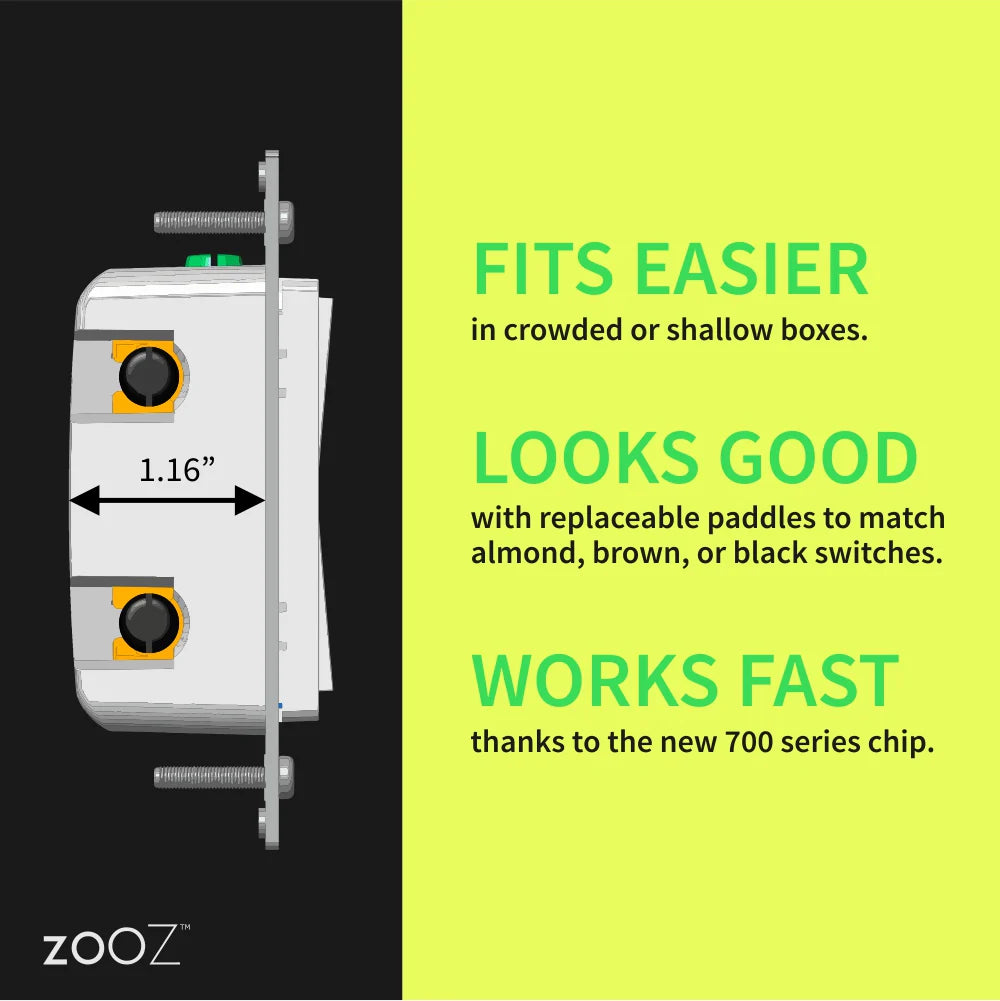

• Small profile (just 1.1" deep) to fit easily in a crowded or shallow box

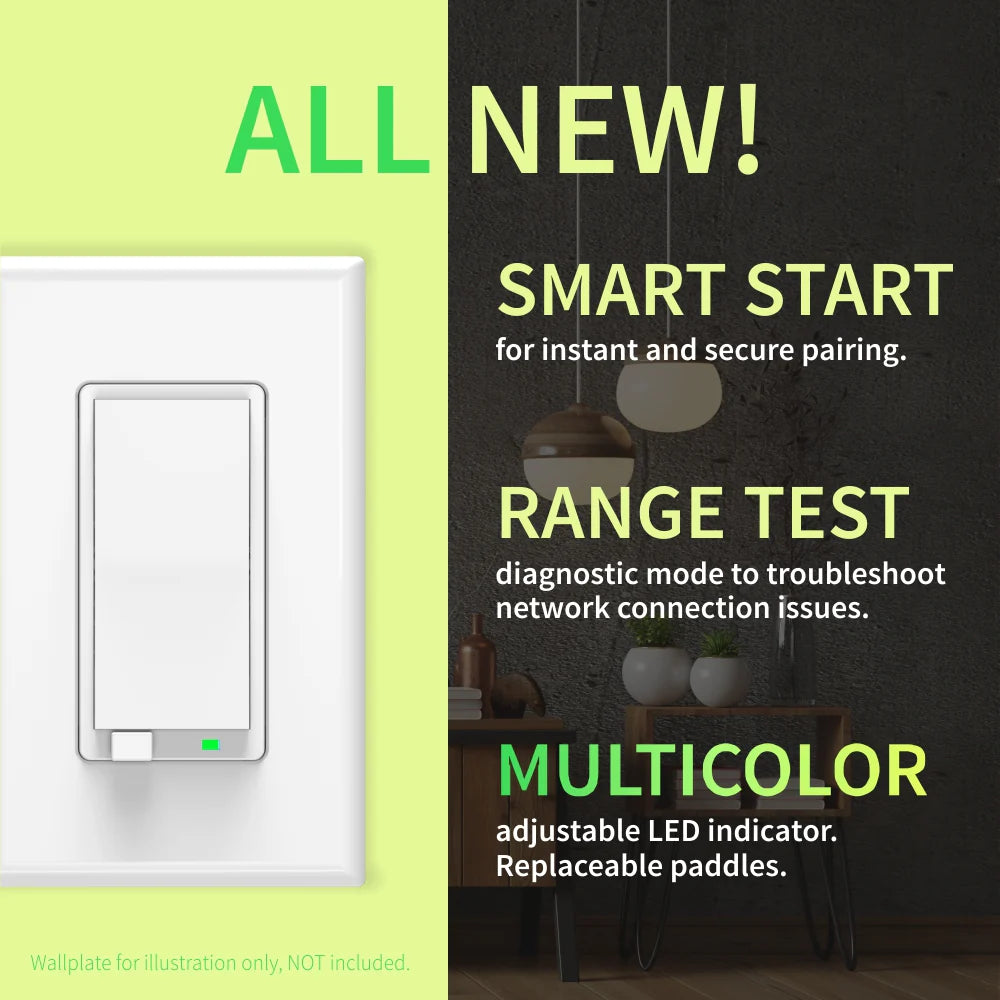

• Adjustable LED indicator: choose the color and brightness that works for you!
• Built-in range test tool: diagnose network issues straight from your switch
• Scene control available on hubs that support multi-tap triggers*
• Smart bulb mode: disable the relay for truly wireless control or use as a remote control / smart add-on switch
• Restores on/off status after power failure
• Compatible with LED, and incandescent bulbs (NOTE: FEIT bulbs are not recommended)
• Don't connect to tube lights, halogen bulbs, transformers, or fans over 3A / 5 years old
• Stronger repeater to boost your Z-Wave network
• Use a standard-size wall plate for single gang installations (wall plate not included)
• 5-year extended warranty if registered within 30 days and lifetime tech support
• Check out Zooz Light Switches & Dimmers Frequently Asked Questions

NOTE: Z-Wave gateway controller required - sold separately. *Your smart hub / controller needs to support advanced settings for you to take advantage of this feature.

SPECIFICATIONS

• Z-Wave Region: US/MX/CA
• Hardware version: 4.0
• Power: 120 VAC, 60 Hz

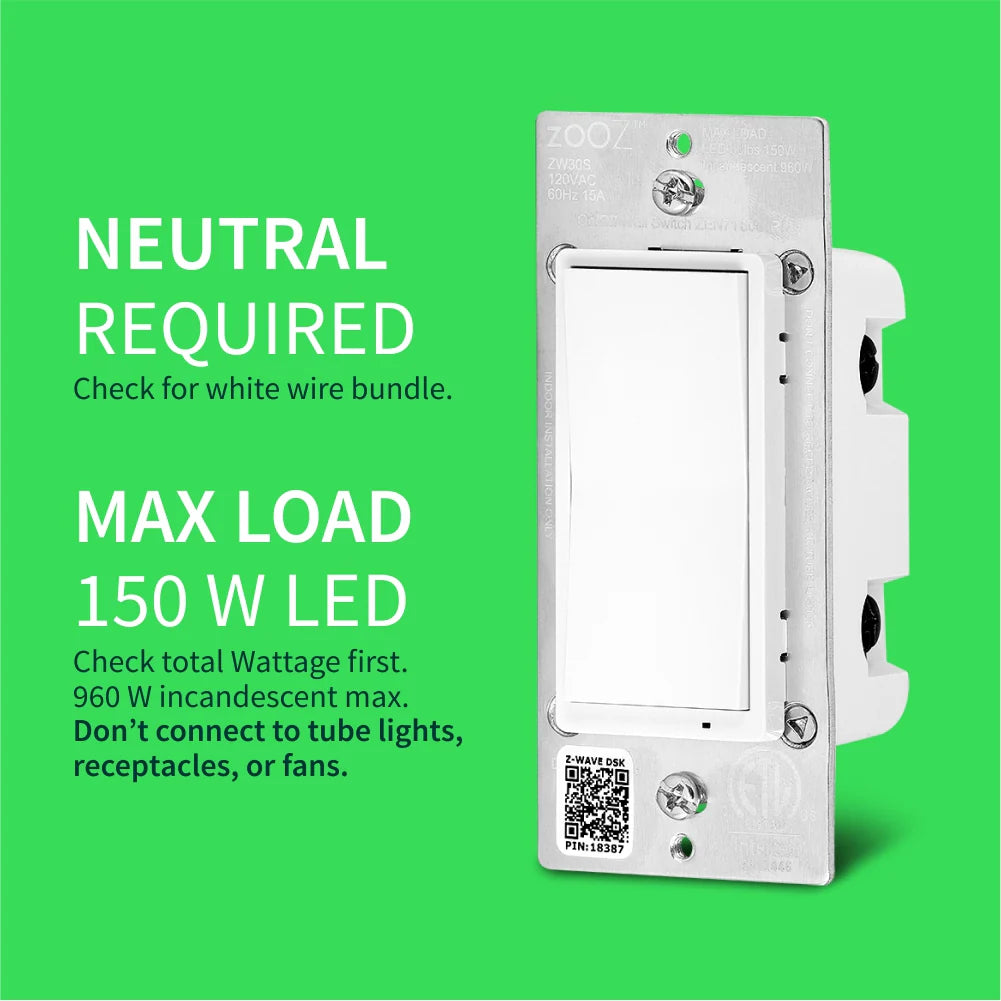

• Maximum Loads: 960W Incandescent, 150W LED and CFL bulbs, 1800W (15A) Resistive, 3A fan motors
• Z-Wave Range: Up to 200 feet line of sight between the hub and the
  closest Z-Wave receiver module, up to 1 mile with Z-Wave Long Range
  enabled (your Z-Wave hub needs to support that feature)
• Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
• Operating Temperature: 32-104° F (0-40° C)
• Installation: Indoor use only

RESOURCES

Download the Manual for Zooz Z-Wave Long Range On / Off Switch ZEN71 800LR (PDF)

More wiring diagrams for 3-way and 4-way set-ups

Zooz Light Switches & Dimmers Frequently Asked Questions

Advanced Settings

Support Portal

WORKS WITH

• Z-Box Hub (recommended for Zooz products)
• 2GIG (no advanced settings or scene control)
• ADT Pulse (no advanced settings or scene control)
• Almond (Securify)
• Fibaro Home Center 2
• Fibaro Home Center Lite
• Home Assistant (Z-Wave JS)
• HomeSeer (with Z-Wave Plus plug-in)
• Homey (Zooz App for Homey)
• Hubitat
• InControl
• Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
• ISY994Zw
• Jeedom
• openHAB
• Open Z-Wave
• Ring (no advanced settings or scene control)
• SmartThings Hub (click here to access the custom lua driver for advanced functionality)
• Wink and Wink 2
• Zipato Z-Wave Zipabox Smart Home Controller
• Zipato ZipaTile Home Automation Controller

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.
