- Customizable energy monitoring reports (W, kWh, A, and V)*
- Recovers original on/off state after power outage
- Test Z-Wave signal directly from this device (range indicated by a multi-color LED indicator)
- Built to last with extra sturdy construction and the latest Z-Wave technology
- Fast wireless communication with other Z-Wave devices and instant status reports to your hub
- Smart LED notifications of high power consumption
- Uses AES bank-grade encryption for wireless communication
- Acts as a range extender for a more reliable Z-Wave mesh network
- Quick installation with auto-inclusion feature
- 1-year warranty
- Check out ZEN15 Frequently Asked Questions
NOTE: Z-Wave gateway controller required - sold
separately. *Your Z-Wave gateway needs to support advanced configuration
to enable these features.

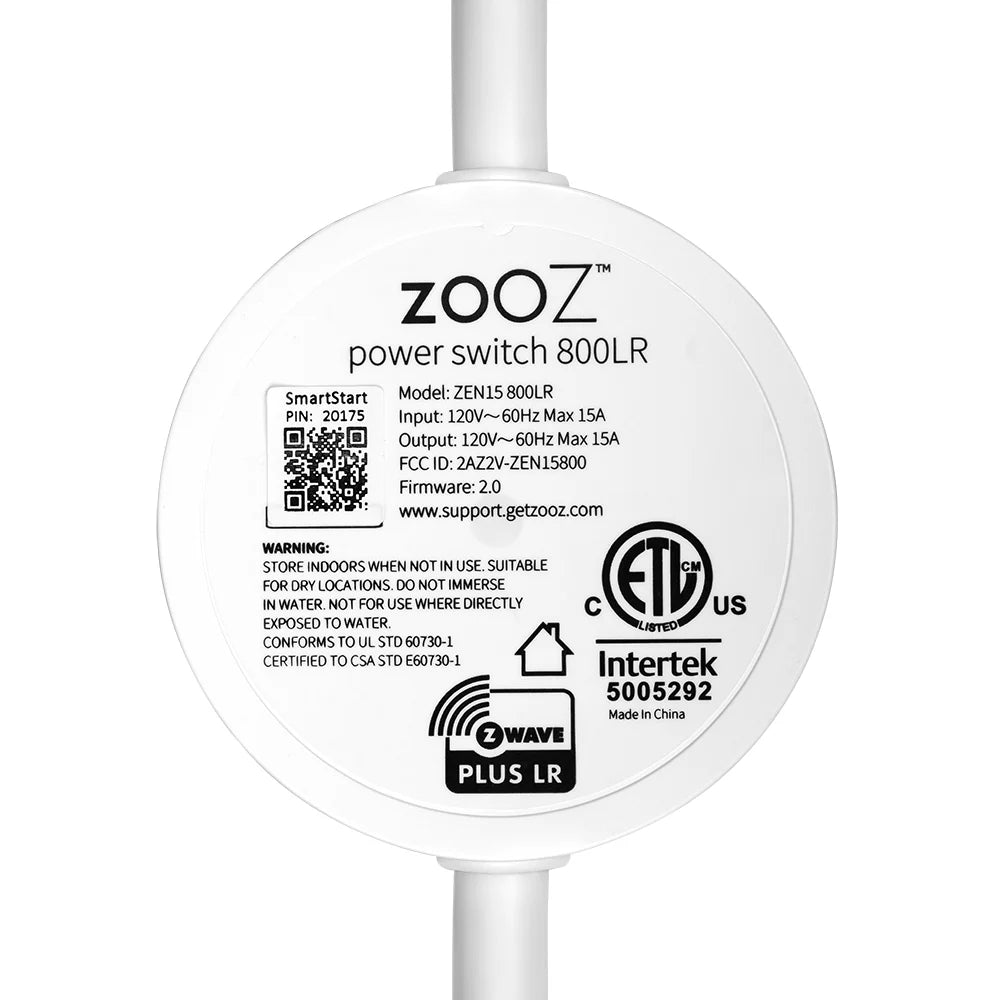

Specifications
- Z-Wave Region: US/CA/MX
- Power: 110V, 60Hz
- Maximum Load: 15A, 1800W, 1 HP
- Z-Wave Range: Up to 150 feet (up to 1300 feet with Long Range)
- Operating Temperature: 14° - 104°F (-10°- 40°C)
- Installation and Use: Indoor use only
- Dimensions: 20” (with cord) x 2.6” 1.1”
- Weight: 10 oz.
RESOURCES
Zooz Z-Wave Plus Power Switch ZEN15 User Manual (PDF)
ZEN15 Frequently Asked Questions
Advanced Settings
Support Portal
WORKS WITH
- Z-Box Hub (recommended for Zooz products)
- 2GIG (no advanced settings available)
- ADT Pulse (no advanced settings available)
- Almond (Securify)
- Fibaro Home Center 2
- Fibaro Home Center Lite
- Home Assistant (Z-Wave JS)
- HomeSeer (with Z-Wave Plus plug-in)
- Homey (Zooz App for Homey)
- Hubitat
- InControl
- Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
- ISY994Zw
- Jeedom
- openHAB
- Open Z-Wave
- Piper (no power consumption info or advanced settings - on/off control only)
- Ring (no power consumption info or advanced settings - on/off control only)
- SmartThings (access the custom lua driver here for advanced functionality)
- Staples Connect DLink (no power consumption info or advanced settings - on/off control only)
- Wink and Wink 2 (no power consumption info or advanced settings - on/off control only)
- Zipato ZipaTile Home Automation Controller
NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.
How It Works
Serious power consumption calls for a serious, sturdy device: this
Z-Wave Power Switch gives you reliable wireless Z-Wave control of a
single large home appliance like refrigerators, microwaves, and window AC units. Connect the Switch with your Z-Wave gateway controller for remote monitoring of connected devices through your smart phone, tablet, or computer.
Create custom schedules and events to run a more
efficient smart home. Schedule an AC unit to turn off and on at the same time every day for streamlined climate control. If your utility company has cheaper rates for off-peak hours, schedule your gas clothes dryer to run later in the evening. When your Z-Wave humidity sensor detects humidity levels that are too high or low, automatically trigger your humidifier or dehumidifier to get to work. During all these advanced smart home scenarios, see where your energy (and money!) are going with the Switch’s helpful energy monitoring feature: view the power consumption of a connected device in live mode or over time.

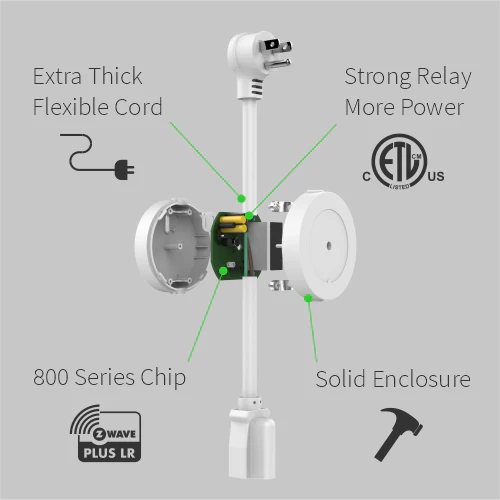

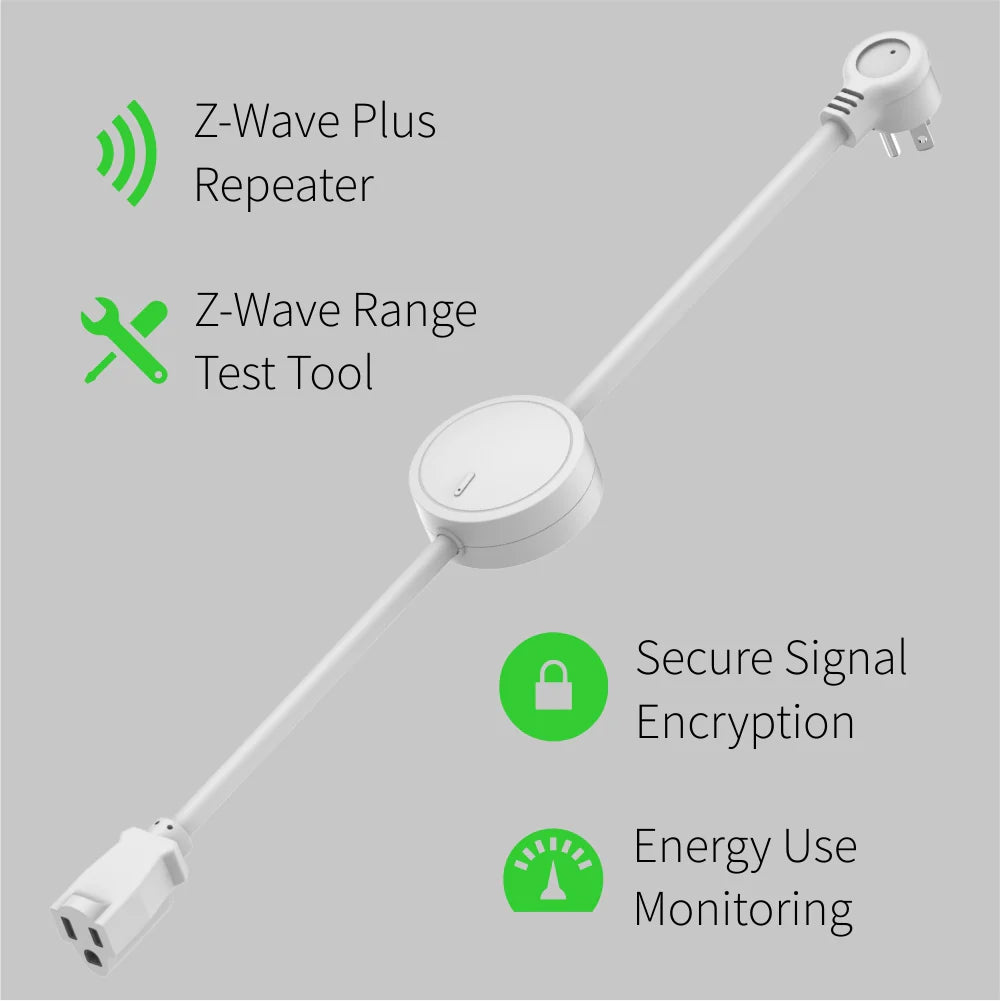

The Power Switch is built with safety and reliability in mind. An LED
indicator communicates Z-Wave signal strength and energy usage of the connected device. It’s also equipped with AES signal encryption and the latest enhancements of Z-Wave Plus like S2 Security: this means faster connectivity and longer range so you can access the more remote spaces
of your smart home.
Installation
- Please read the manual in full before proceeding with the installation
- Be sure the load you’d like to connect DOES NOT exceed 1800W, 15A, or 1 HP in power
- DO NOT CONNECT THIS SWITCH TO 220V APPLIANCES – this will damage the device and may cause the connected appliance to malfunction
- Do not connect to power strips or splitters; the ZEN15 is intended
to control a single device within the specifications.The ZEN15 and all of our other smart plugs are designed to control and monitor a single device at a time. Multiple inductive loads with their rapid current changes happening at once, may damage the device or cause abnormal behavior.
Before plugging any device or appliance into the Power Switch, plug
the Switch into a standard grounded 110V receptacle. Press and release the Z-Wave button. Make sure the LED indicator turns on – this verifies the device is getting power.
Once the Switch is powered, the device can now be included into your Z-Wave network. Be sure to include the Power Switch to your network BEFORE connecting any appliance to it.
For Auto Inclusion, put your Z-Wave hub into inclusion/pairing mode (see your hub’s user manual for instructions). Plug the Power Switch into a grounded receptacle within direct range of your Z-Wave hub. Once included, the LED will start flashing blue, then turn solid blue (on) or pink (off). The Power Switch will appear as an on/off device on your hub’s device list.
For Manual Inclusion, plug the Switch into a grounded receptacle within direct range of your Z-Wave hub. Put your hub into inclusion/pairing mode. Press and release the Z-Wave button 3 times quickly. When successfully included, the LED will flash blue and then turn solid blue (on) or pink (off). The new device will appear on your hub’s device list.
