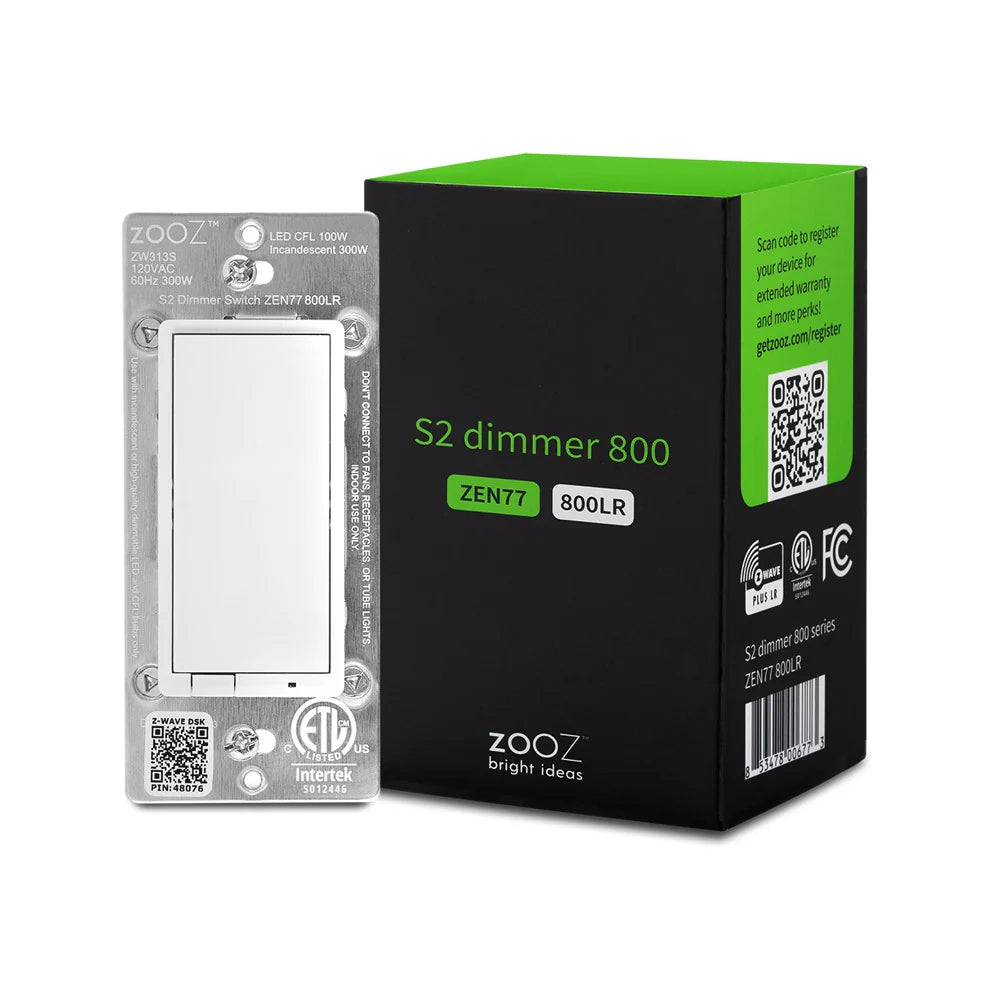

Zooz 800 Series Z-Wave Long Range S2 Dimmer Switch ZEN77 800LR

$35.25
$35.25
$46.95
Shipping calculated at checkout.
  • Turn your lights on, dim them, or turn them off from the wall dimmer or through Z-Wave
  • NEW 800 chip: more range, faster signal, SmartStart inclusion + S2 security
  • Z-Wave Long Range ready: extend the wireless coverage up to 1 mile if your hub supports Long Range

Bedroom mood lighting - Dim LED bulbs up to 100W with customizable ramp rates and night light mode (press-hold lower paddle) for gentle nighttime illumination without full brightness

Living room scene automation - Use multi-tap scene control to trigger different lighting moods (movie night, entertaining, reading) and coordinate with other smart devices

Stairway/hallway dimming - Direct 3-way/4-way support allows multi-point control with minimal rewiring, ideal for staircases where you need control from multiple locations

Energy-efficient LED retrofit - Replace old incandescent dimmers with modern TRIAC technology supporting high-quality LEDs while extending Z-Wave LR range up to 1 mile in larger homes

Customized lighting control - Program double-tap/single-tap functions for personalized actions, adjust min/max brightness levels, and choose LED indicator color/brightness to match your preferences

  • Wall Switch
  • Pigtail wire
  • Installation manual

We hope to build a community on our Discord and continue delivering products the community wants. Our team will be there to help answer any questions, suggestions, or problems you might have.

Join our Discord.

Please see our Apollo Wiki for more information.

Product Details

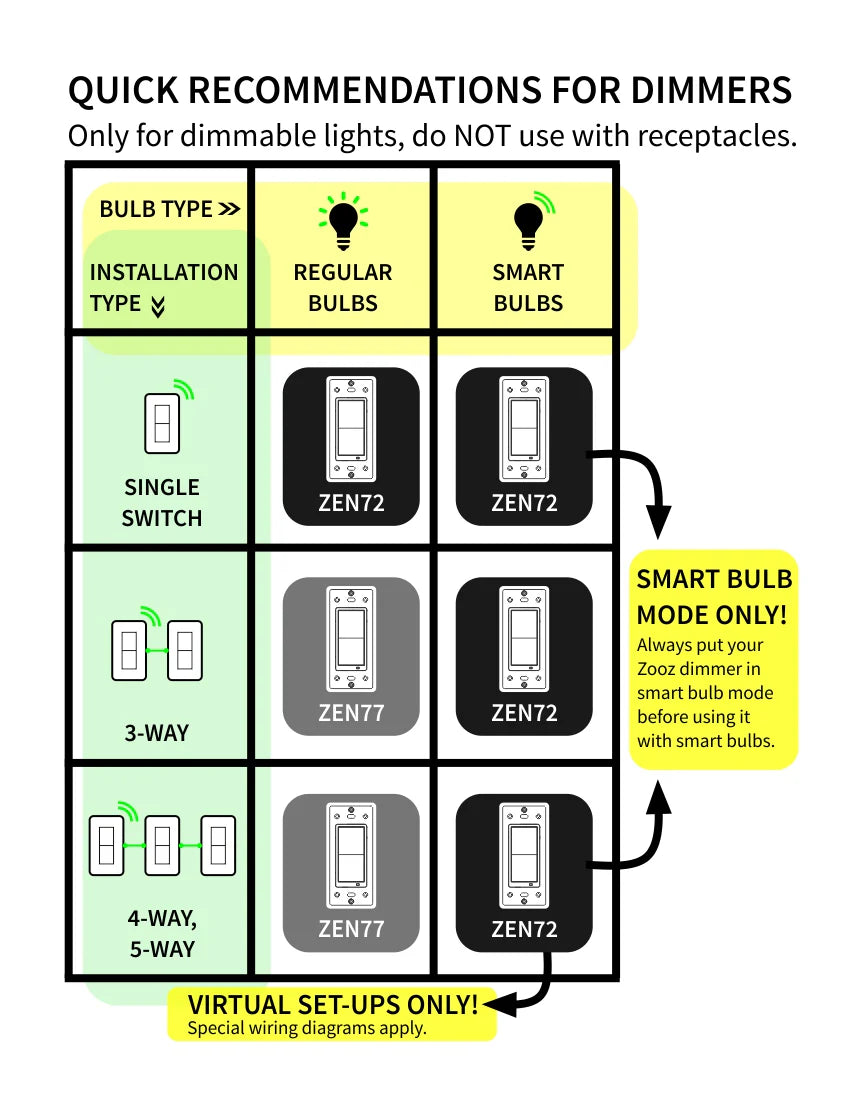

  • What's the difference between the ZEN77 and the ZEN72 model? Read here!

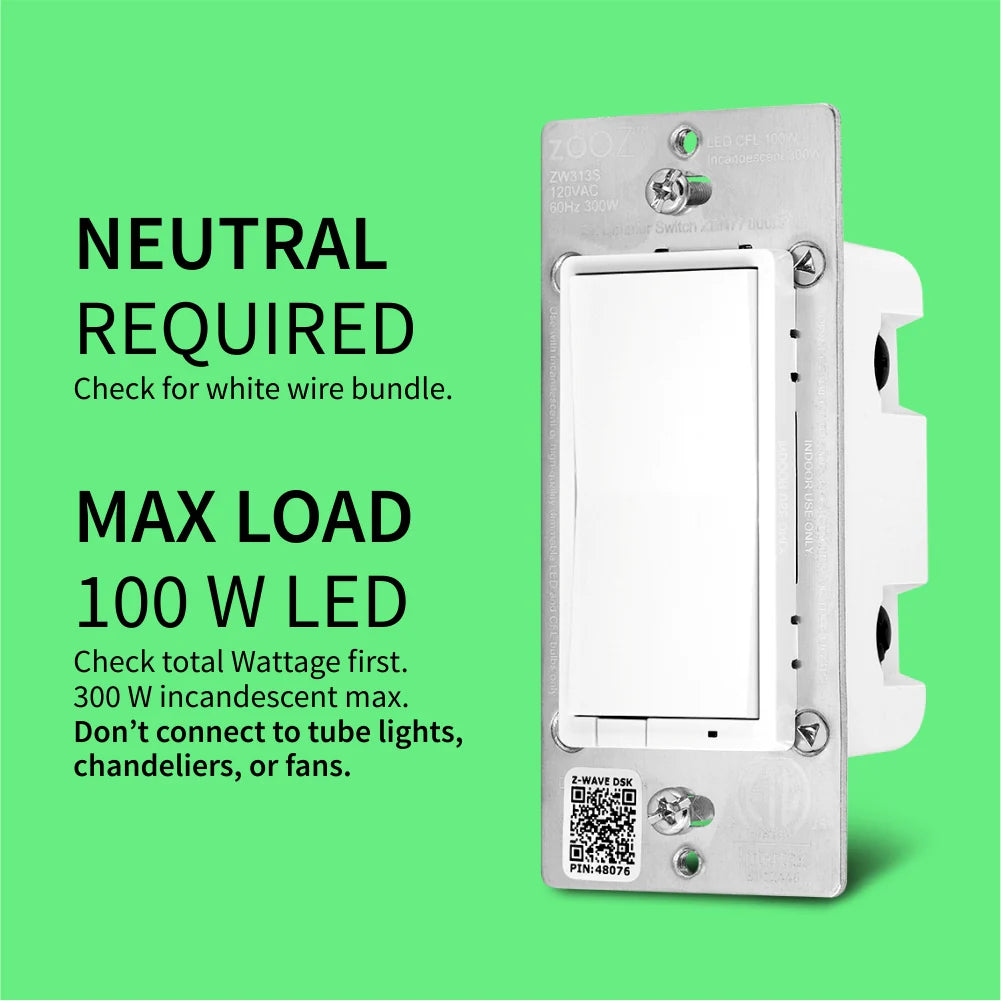

  • TRIAC Dimmer: use with high-quality LED bulbs up to 100 W or incandescent bulbs up to 300 W (do NOT connect to tube lights, halogen bulbs, transformers, chandeliers, fans, switched receptacles, or CFL bulbs, FEIT bulb are NOT recommended)
  • Simple Direct 3-Way & 4-Way: Less rewiring for more
    multi-point control scenarios like 4-ways and 5-ways where load and
    line are in separate boxes. Use it the same way as the ZEN27 dimmer. Neutral wire required.
  • Replaceable paddles (almond, brown, and black paddle kits available)

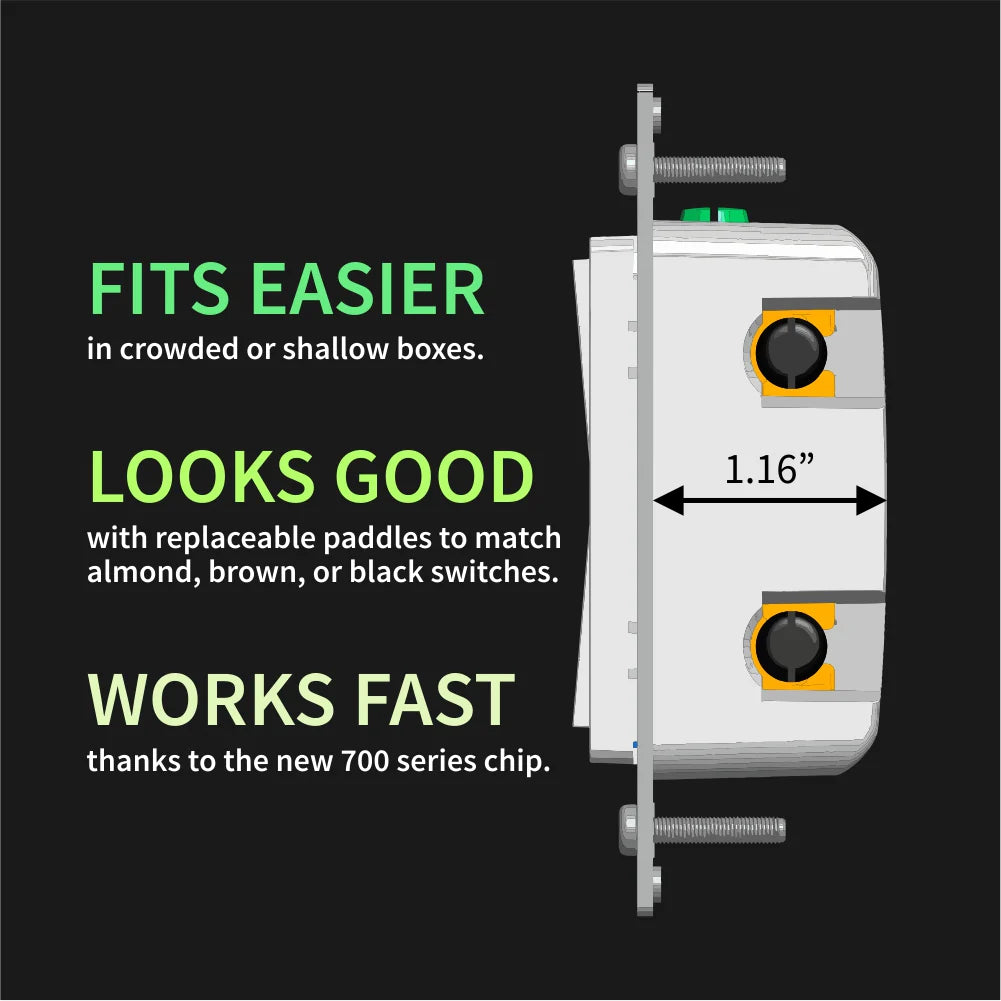

  • Small profile (just 1.1" deep) to fit easily in a crowded or shallow box

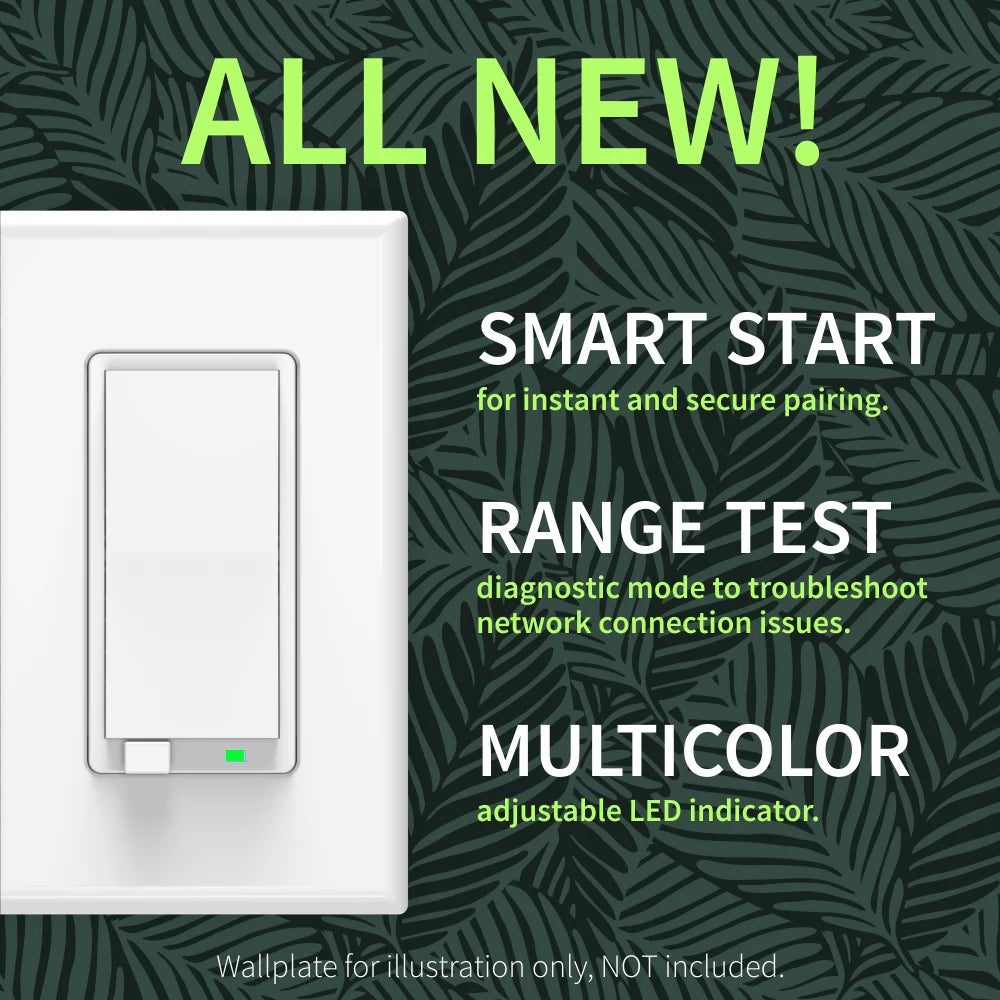

  • Adjustable LED indicator: choose the color and brightness that works for you!

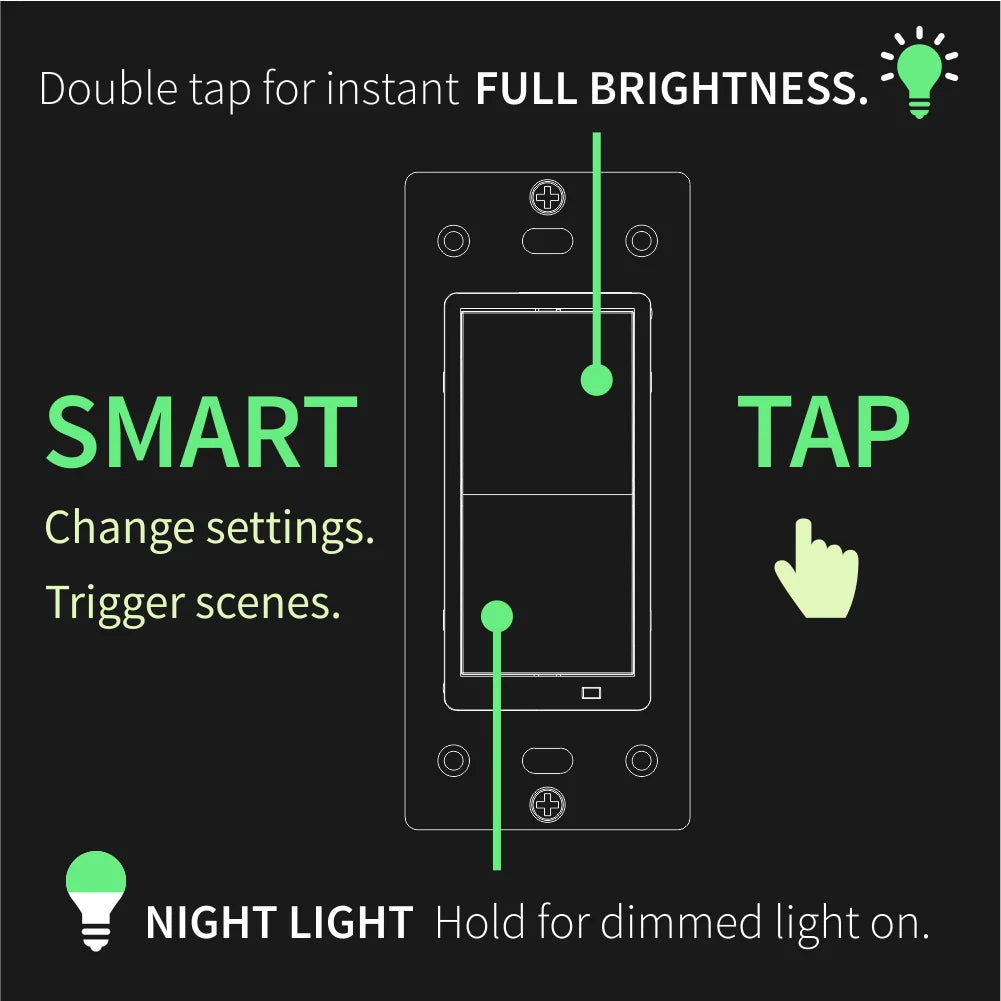

  • Night Light Mode: press and hold the lower paddle when dimmer is off to turn the light on to low brightness
  • Scene Control (select hubs only): activate scenes and trigger other devices with multi-tap*
  • You choose the color and brightness level of the LED indicator*
  • Programmable double tap and single tap for truly customized control*
  • Adjustable ramp rate and maximum/minimum brightness levels*
  • OTA firmware updates for a future-proof device
  • Signal repeater will make your Z-Wave network more reliable
  • Use a standard-size wall plate for single gang installations (wall plate not included)
  • 5-year extended warranty (register your product here) and lifetime tech support
  • Check out Zooz Light Switches & Dimmers Frequently Asked Questions

NOTE: Z-Wave gateway controller required -
sold separately. *Your hub needs to support advanced parameter input to display these features.

SPECIFICATIONS

  • Z-Wave Region: US/MX/CA
  • Hardware version: 4.0
  • Power: 120 VAC, 60 Hz
  • Maximum Load: 100 W LED, 300 W incandescent
  • Z-Wave Range: Up to 200 feet line of sight, up to 1 mile with Z-Wave
    Long Range enabled (your Z-Wave hub needs to support that feature)
  • Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
  • Operating Temperature: 32-104° F (0-40° C)
  • Installation: Indoor use only

RESOURCES

Download the Manual for Zooz 800 Series Z-Wave Long Range S2 Dimmer Switch ZEN77 (PDF)

Zooz Light Switches & Dimmers Frequently Asked Questions

Additional Wiring Diagrams

Advanced Settings

Support Portal

WORKS WITH

  • Z-Box Hub (recommended for Zooz products)
  • 2GIG (no advanced settings available)
  • Abode (no advanced settings available)
  • ADT Pulse (no advanced settings available)
  • Almond (Securify) (no advanced settings available)
  • Fibaro Home Center 2
  • Fibaro Home Center Lite
  • Home Assistant (Z-Wave JS)
  • HomeSeer (with Z-Wave Plus plug-in)
  • Homey (Zooz App for Homey)
  • Hubitat
  • InControl
  • Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
  • ISY
  • Ring (no advanced settings or scene control)
  • SmartThings (click here to access the custom lua driver for advanced functionality)
  • Wink and Wink 2 (no advanced settings)

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.
