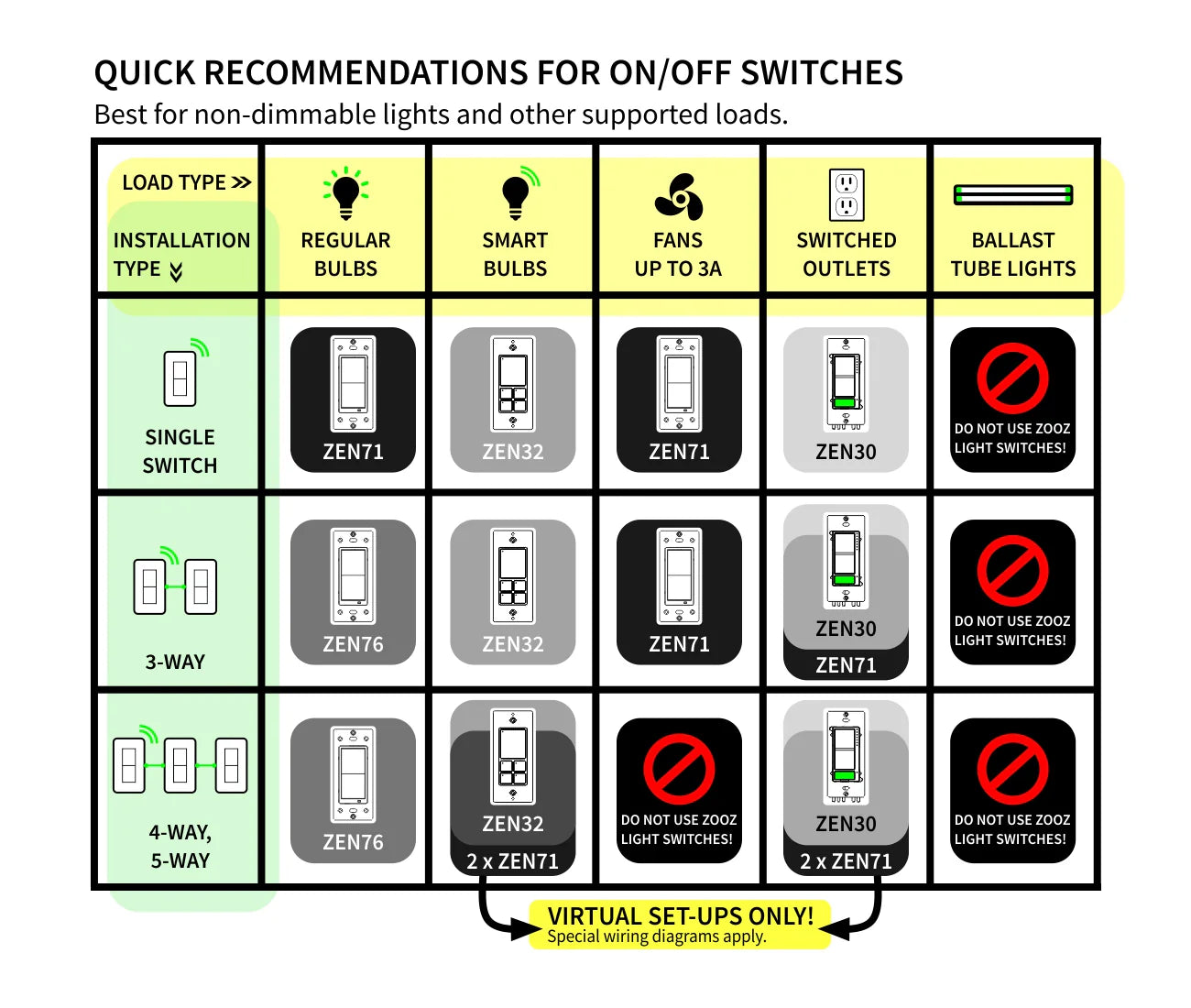

- Use with high-quality LED or incandescent lighting only: do NOT connect to switched receptacles, fans, halogen bulbs, transformers, or tube lights (NOTE: FEIT bulbs are not recommended)

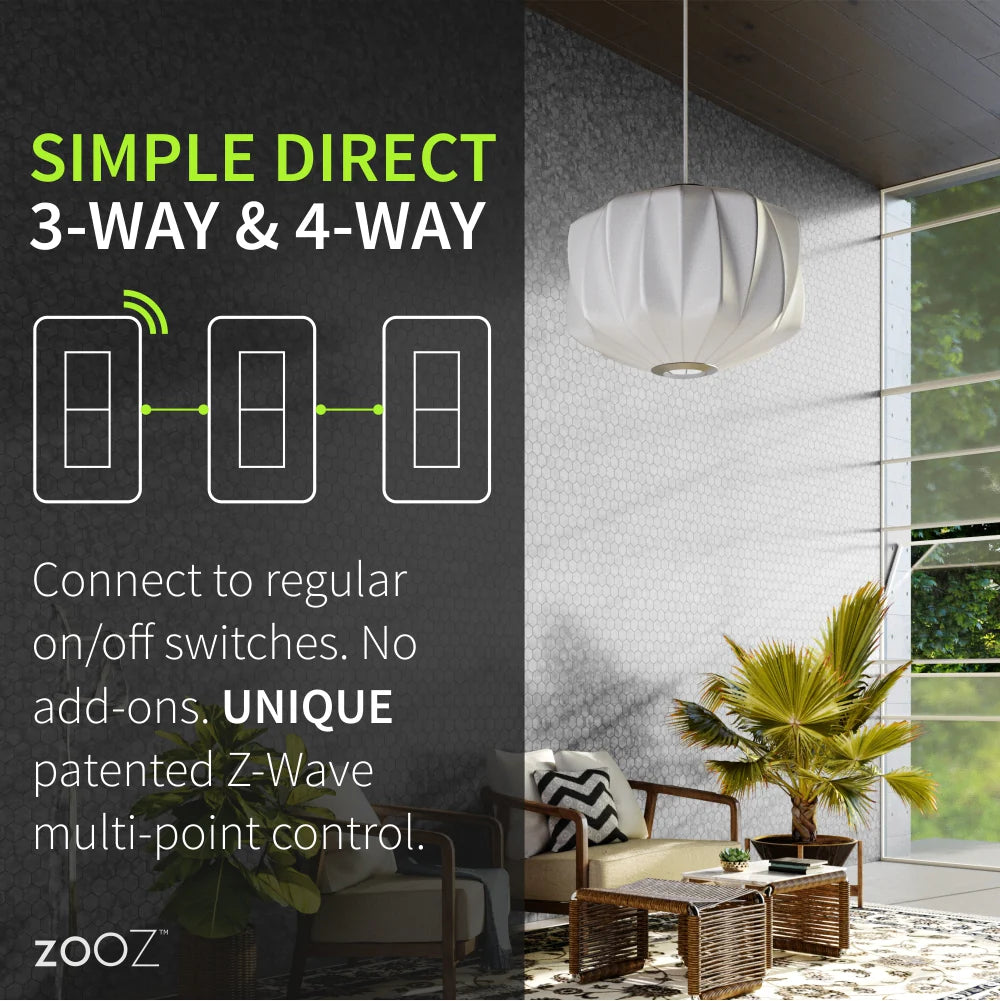

- Simple Direct 3-Way & 4-Way: Still no add-on and
use it in larger set-ups for multi-point control. Wires like the ZEN26 model with quick and easy installation guaranteed. (Neutral wire required) - Replaceable paddles (almond, brown, and black paddle kits available, contact us for availability)

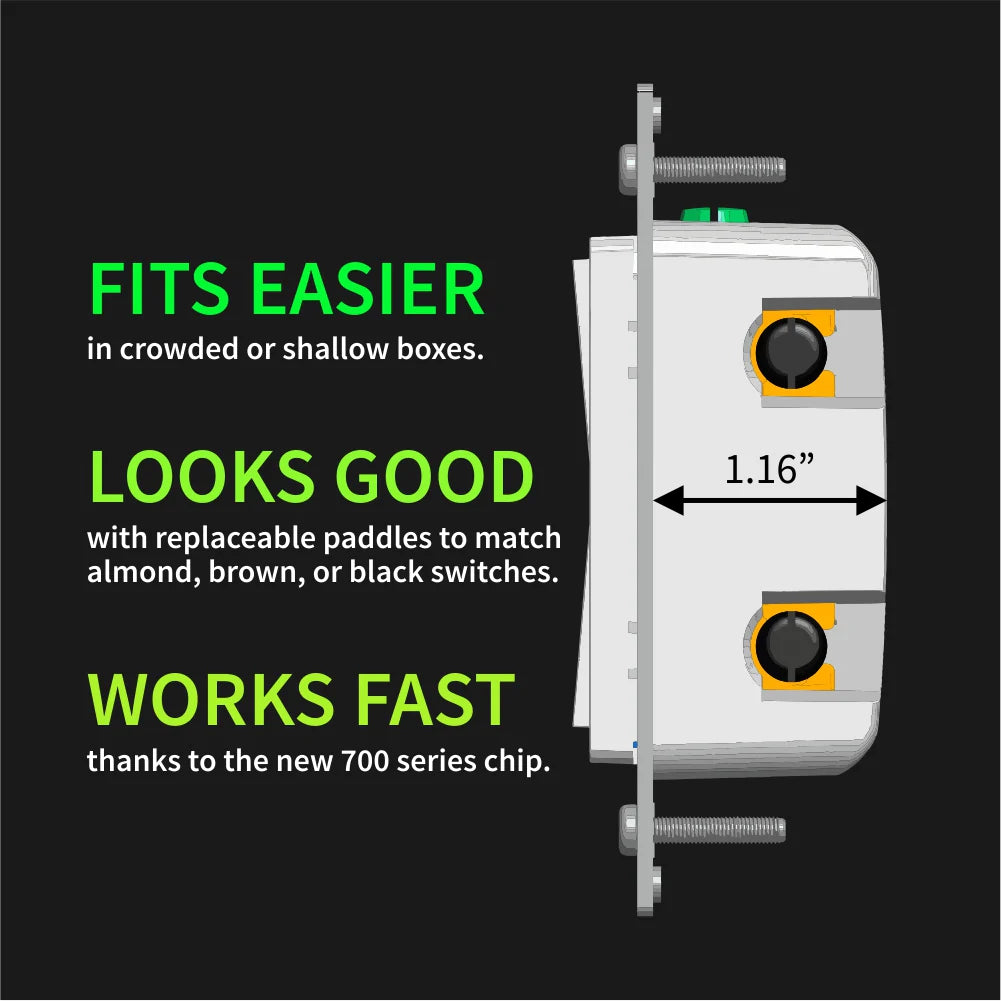

- Small profile (just 1.1" deep) to fit easily in a crowded or shallow box
- Scene Control on hubs that support multi-tap triggers*
- Adjustable LED indicator: choose the color and brightness that works for you!
- Smart range test mode: troubleshoot communication issues right from your switch
- Immediate on/off status reports

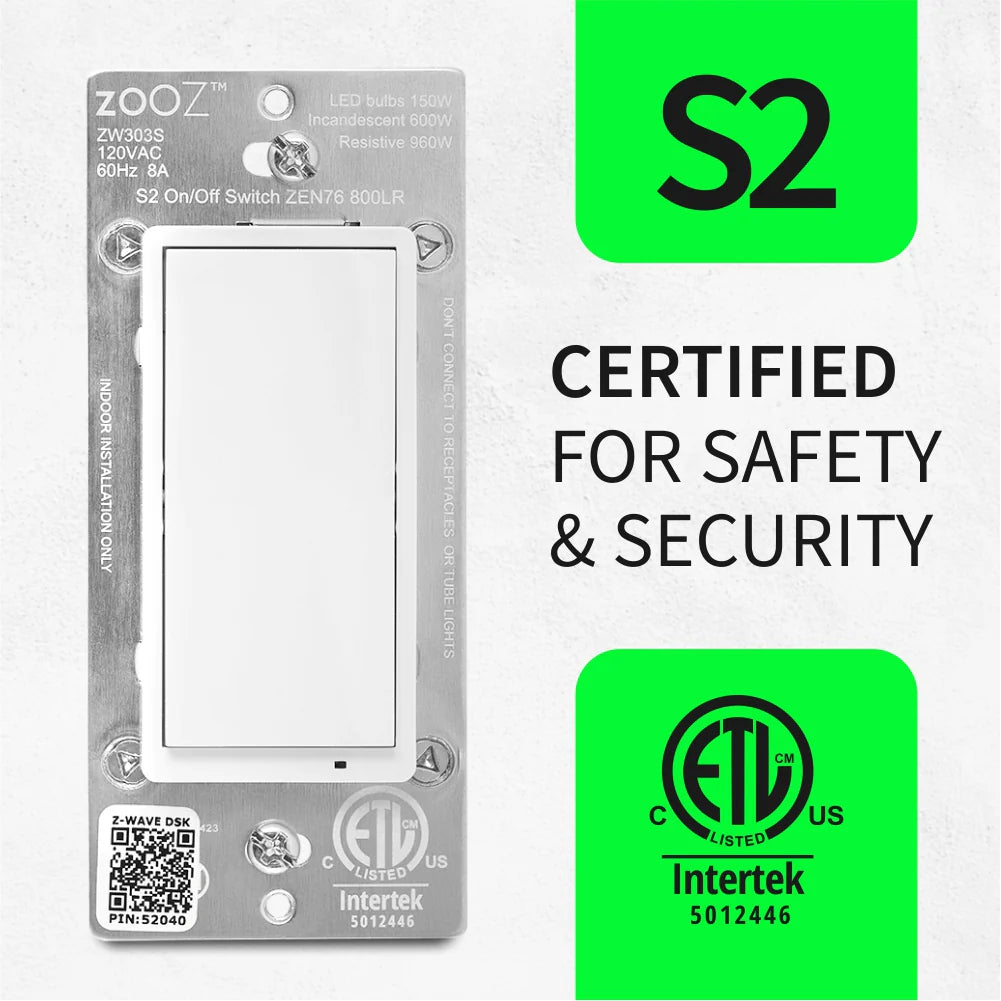

- S2 security for hacker-proof smart home
- Update firmware via OTA anytime in the future to keep your device up to date with the latest technology
- Smart LED indicator makes pairing and set-up more intuitive (now control the LED mode with 6 clicks of any paddle!)
- Stronger signal extender for a more reliable Z-Wave mesh
- Restores status after power failure
- Use a standard-size wall plate for single gang installations (wall plate not included), Leviton plates work best
- 5-year extended warranty if registered within 30 days and lifetime tech support
- Check out Zooz Light Switches & Dimmers Frequently Asked Questions
NOTE: Z-Wave gateway controller required - sold separately.*Your hub needs to support advanced settings for this
feature to be available.
SPECIFICATIONS
- Z-Wave Region: US/MX/CA
- Hardware Version: 3.0
- Power: 120 VAC, 60 Hz

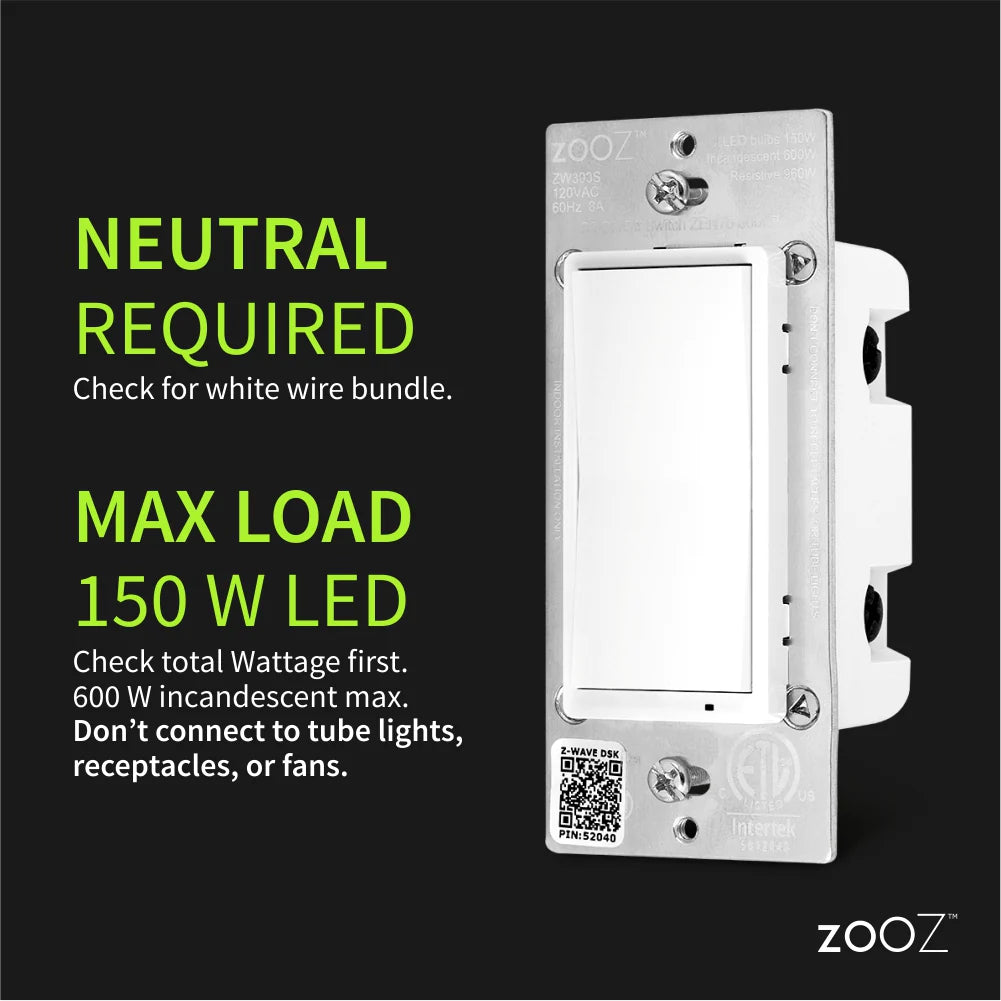

- Maximum Load: 8 A, 150 W LED/CFL, 600 W incandescent
- Z-Wave Range: Up to 200 feet line of sight, up to 1 mile with Z-Wave Long Range enabled (your Z-Wave hub needs to support that feature)
- Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
- Operating Temperature: 32-104° F (0-40° C)
- Installation: Indoor use only
RESOURCES
Download the Manual for Zooz 800 Series Z-Wave Long Range S2 On / Off Wall Switch ZEN76 (PDF)
Zooz Light Switches & Dimmers Frequently Asked Questions
Additional Wiring Diagrams
Advanced Settings
Support Portal
WORKS WITH
- Z-Box Hub (recommended for Zooz products)
- 2GIG (no advanced settings available)
- Abode
- ADT Pulse (no advanced settings available)
- Almond (Securify)
- Fibaro Home Center 2
- Fibaro Home Center Lite
- Home Assistant (Z-Wave JS)
- HomeSeer (with Z-Wave Plus plug-in)
- Homey (Zooz App for Homey)
- Hubitat
- InControl
- Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
- ISY994Zw
- Ring (no advanced settings or scene control)
- SmartThings (click here to access the custom lua driver for advanced functionality)
- Staples Connect DLink (no advanced settings - on/off control only)
- Wink and Wink 2 (no advanced settings)
NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.
