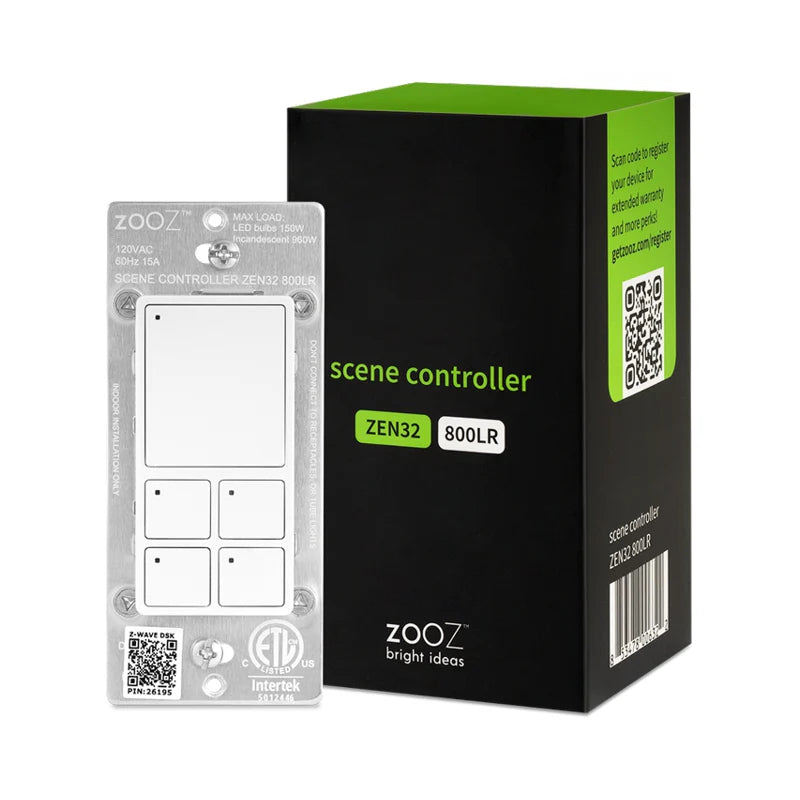

Zooz 800 Series Z-Wave Long Range Scene Controller Switch ZEN32 800LR

Regular price: $37.95
Sale price: $37.95
Regular price: ~~$47.95~~

Shipping calculated at checkout.

NEW: Hardware VER 3.0 with redesigned button panel. See the ZEN32 Change Log for full details.
On/off Z-Wave and manual control from the main button: use with 120 V lights or fans under 3 A
4 smart buttons for remote control*

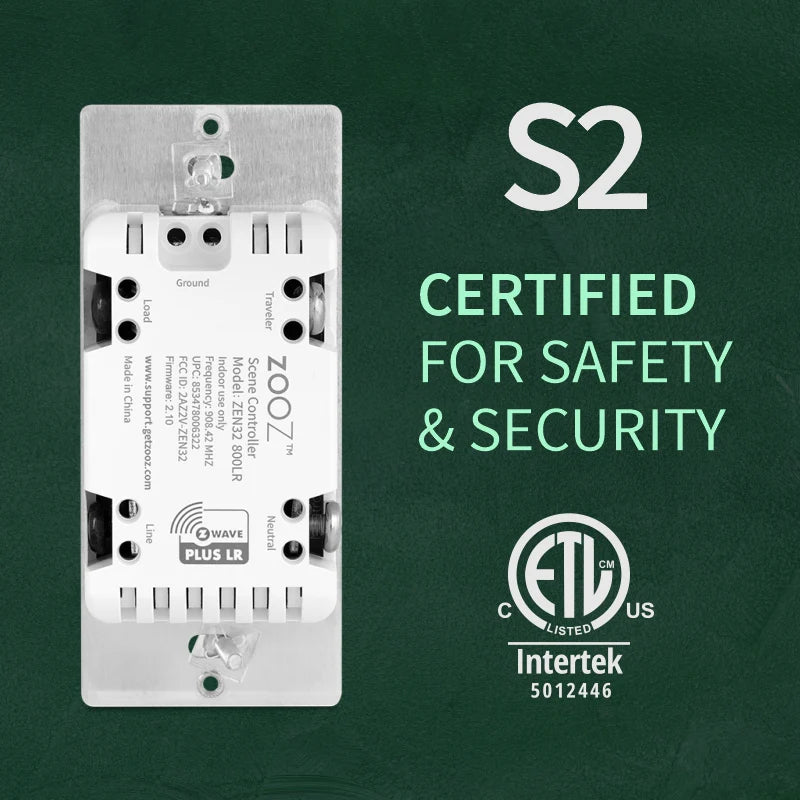

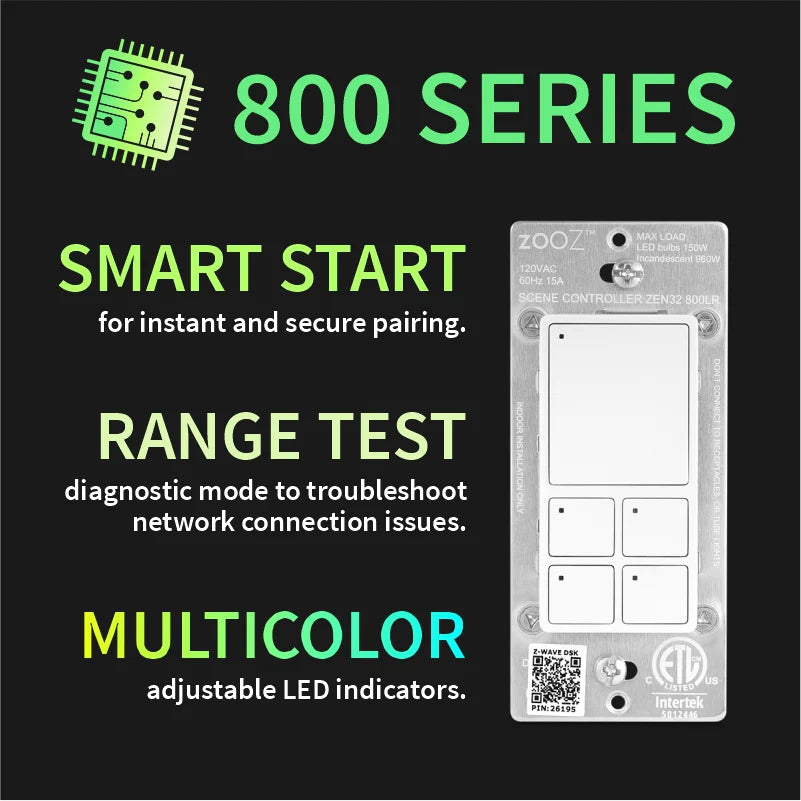

NEW 800 chip: more range, faster signal, SmartStart inclusion + S2 security
Z-Wave Long Range ready: extend the wireless coverage up to 1 mile if your hub supports Long Range

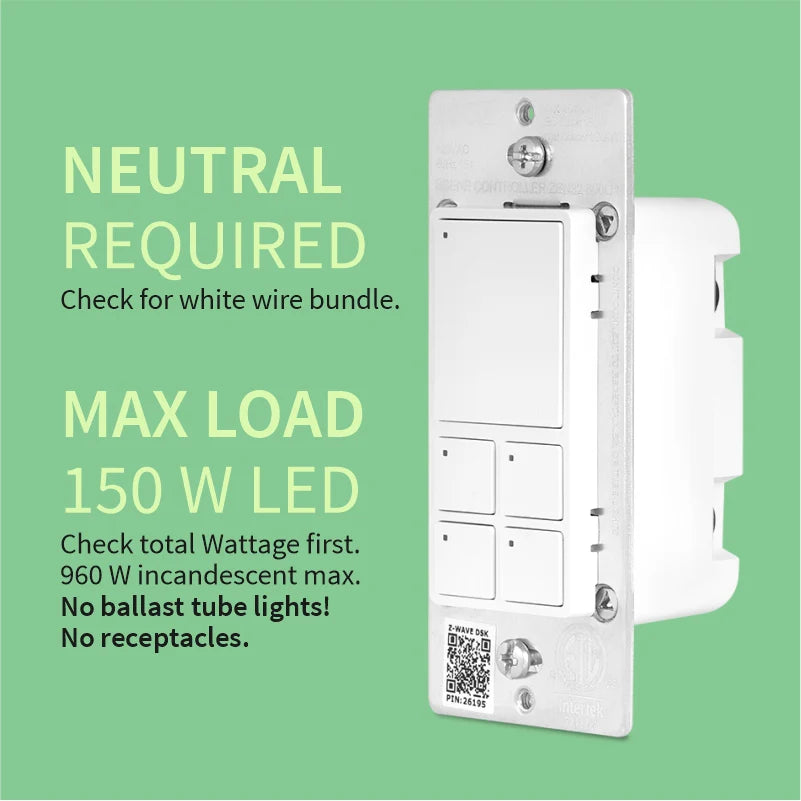

Direct 3-Way Solution: no add-on switch needed, wires just like the ZEN71 model (Neutral required, 4-Way wiring possible if direct connection to load and line are in the same box, check before buying)

Bedroom lighting scenes - Main button controls overhead light while 4 smart buttons trigger bedtime, reading, wake-up, and movie scenes across multiple smart bulbs and devices

Home theater control - Use as wireless remote to trigger movie mode (dim lights, lower shades, turn on TV/sound system) without connecting to a physical load via smart bulb mode

Whole-home automation hub - Wall-mounted central control panel triggering up to 35 scenes like goodnight routine, away mode, entertaining, or panic alarm from a single location

Kitchen multi-zone control - Main paddle controls overhead lights while buttons independently manage under-cabinet LEDs, pendant lights, exhaust fan, and disposal with customizable LED indicators

Garage workshop shortcuts - Control garage lights on main button, use 4 buttons for tool presets (table saw outlet, dust collector, compressor, air filtration) with direct 3-way wiring option

Zooz scene controller
Manual

We hope to build a community on our Discord and continue delivering products the community wants. Our team will be there to help answer any questions, suggestions, or problems you might have.

Join our Discord.

Please see our Apollo Wiki for more information.

Product Details

Great for a regular single pole installation
Adjustable LED indicators: choose from different colors and brightness levels
Built-in range test tool: troubleshoot your network straight from the device
Scene control: trigger up to 35 scenes, control up to 35 devices (available on hubs that support multi-tap triggers*)
Smart bulb mode: disable the relay for truly wireless control or use as a remote control / smart add-on switch
Compatible with quality LED, CFL, and incandescent bulbs (don't connect to ballast tube lights, halogen bulbs, transformers, switched receptacles, or fans over 3A / 5 years old; NOTE: FEIT bulbs are not recommended)
Extra-strong repeater to expand the coverage of your Z-Wave network
Use a standard-size wall plate for single gang installations (wall plate not included)
5-year warranty and lifetime tech support
Check out ZEN32 Frequently Asked Questions
Not sure which switch model to choose? Read a guide to Zooz switches here!

NOTE: Z-Wave gateway controller required - sold separately. *Your smart hub / controller needs to support advanced settings and central scene programming or direct association access for you to take advantage of this feature.

SPECIFICATIONS

Z-Wave Region: US / MX / CA
Power: 120 VAC, 60 Hz
Maximum Loads: 960W Incandescent, 150W LED and CFL bulbs, 1800W (15A) Resistive, 3A fan motors
Z-Wave Range: Up to 500 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module
Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
Operating Temperature: 32-104° F (0-40° C)
Installation: Indoor use only
