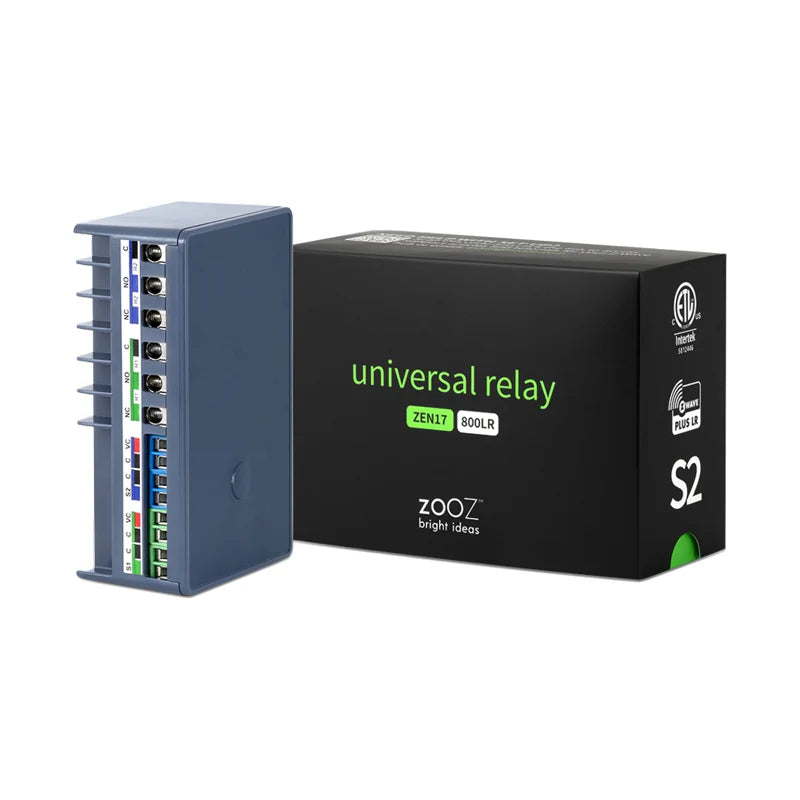

Zooz 800 Series Z-Wave Long Range Universal Relay ZEN17 800LR with 2 NO & NC Relays (20A, 10A)

$27.95
$27.95
$45.75
Taxes and Shipping are calculated at checkout.

PRODUCT HIGHLIGHTS

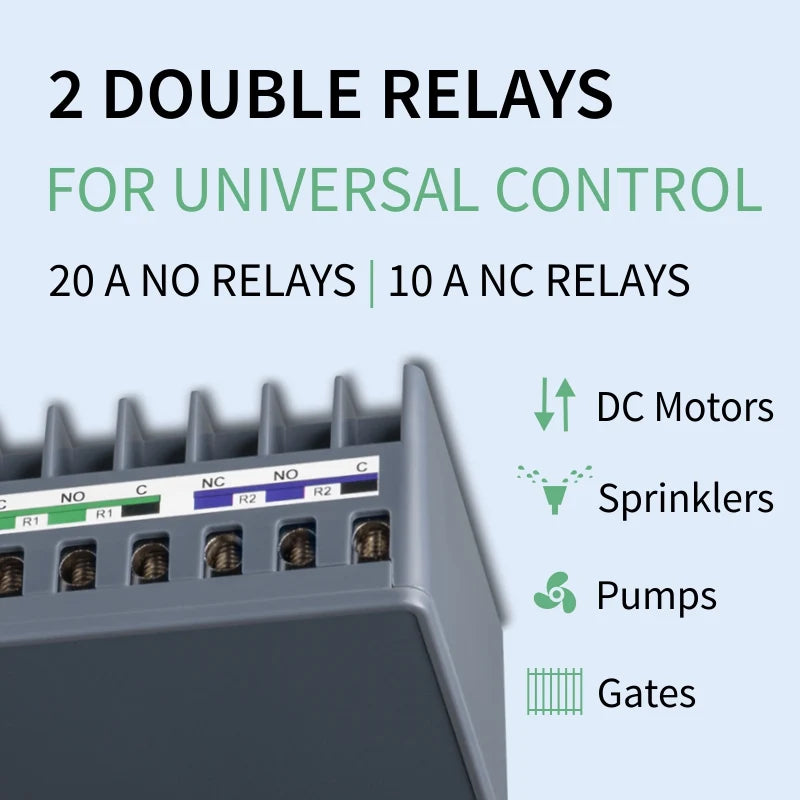

  • 2 NO or NC relays to turn almost any load into a Z-Wave device (use either the normally closed or normally open relay for R1 and R2 at a time)

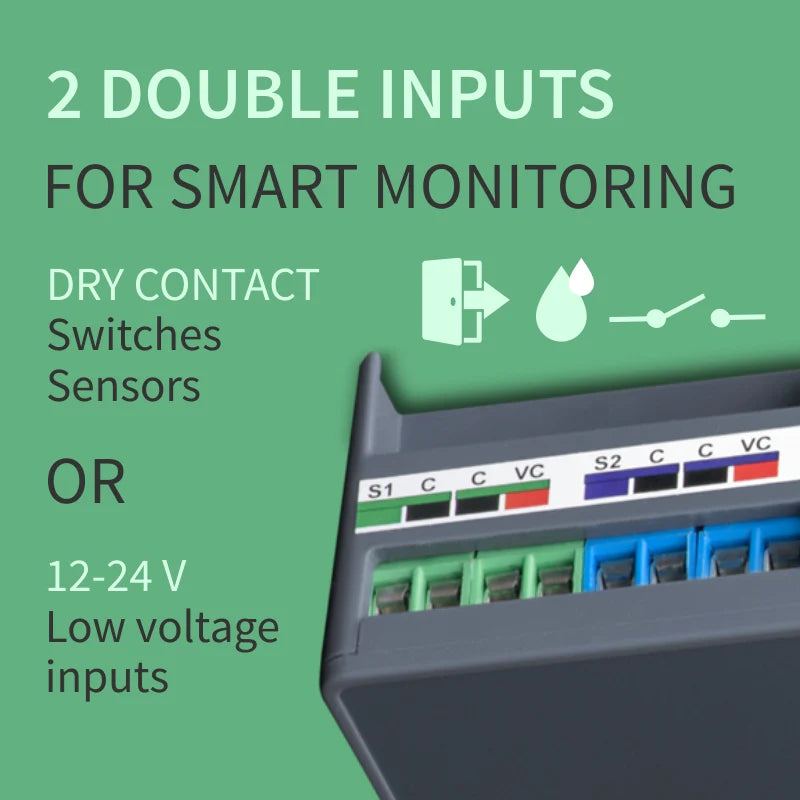

  • 2 Dry Contact or 12-24 V inputs to monitor HVAC systems, magnetic door sensors, or analog leak alarms (use either dry contact or 12-24 V input for R1 and R2 at a time, never apply voltage to the Sw terminals)
  • What's the difference between the ZEN17 and the ZEN16 model? Read here!
Condition:
  • Garage doors and gates - Wire across the existing button terminals to open and close from your dashboard, with a contact sensor on the input side reporting whether it is actually open.
  • Irrigation and pool equipment - Switch sprinkler valves, pool pumps, and landscape lighting on a schedule or based on weather data, without a proprietary controller.
  • Motorized screens, awnings, and blinds - Two relays give you up and down control of a DC motor from one device.
  • HVAC and whole-house fans - The inputs monitor an existing system for run status while the relays handle the fan, so you can see what is running and act on it.
  • Old wired sensors and alarms - Bring legacy magnetic door contacts and analog leak detectors into your automations instead of replacing the wiring you already have.
  • Zooz relay

We hope to build a community on our Discord and continue delivering products the community wants. Our team will be there to help answer any questions, suggestions, or problems you might have.

Join our Discord.

Please see our Apollo Wiki for more information.

Product Details

  • Automate up / down DC motors in screens, awnings, motorized blinds
  • Control sprinkler systems, commercial gates, garage doors (will NOT
    work with MyQ or other smart openers), pool pumps, whole-house fans,
    landscape lighting, and more

  • NEW 800 chip: more range, faster signal, SmartStart inclusion + S2 security
  • Z-Wave Long Range ready: extend the wireless coverage up to 1300 feet if your hub supports Long Range

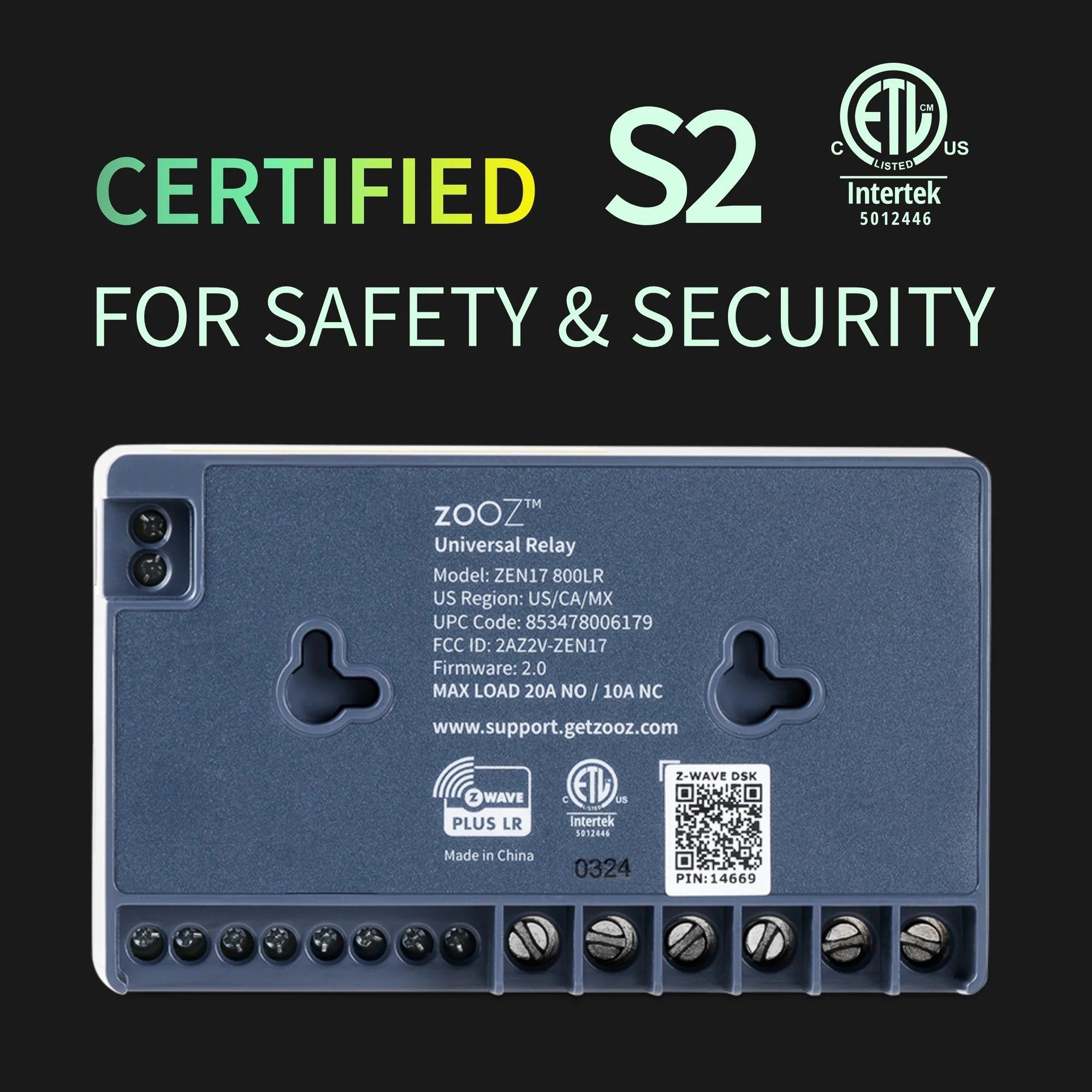

  • SmartStart and S2 authenticated security for a truly secure smart home
  • Powered by USB C or 12-24 V (AC/DC): power supply NOT included (get it here), do NOT use laptop, tablet, or fast chargers to power the ZEN17! Use a small  5V max 1A power supply  only.
  • Use optional wall switches for manual control of connected devices
  • Wall-mount ready
  • 5-year warranty and lifetime tech support
  • Check out ZEN17 Frequently Asked Questions

NOTE: Z-Wave gateway controller required - sold separately.

Z-WAVE FREQUENCY

This product is available in different Z-Wave frequencies so
please make sure you choose the correct region before checking out. You need to select the same frequency / region as your hub when buying Z-Wave devices for them to include to your system. If you're not sure which frequency your hub operates on, please contact your solution provider first. Here is what each option stands for:

  • US/CA/MX: 908.42 MHz (used primarily in US, Canada, and Mexico, the default option for all products)
  • EU/UK: 868.42 MHz (used primarily in Europe)
  • AU/NZ: 921.4 MHz (used primarily in Australia and New Zealand)

SPECIFICATIONS

  • Z-Wave Frequency: 908.42 MHz (US, CA, MX) / 868.42 MHz (EU) - choose your region before adding this product to cart
  • Power: 12 - 24 V / USB C (Use a small  5V max 1A power supply  only).
  • Maximum Load: NO relays: 20 A, NC Relays: 10 A
  • Z-Wave Range: Up to 300 feet line of sight (up to 1300 feet with Z-Wave Long Range)
  • Installation and Use: Indoor Only
  • Operating Temperature: 32-104° F (0-40° C)
  • Dimensions: 4" x 2.5" x 1.5"

USE CASES

RESOURCES

Zooz Z-Wave Long Range 800 Series S2 Universal Relay Manual (PDF)

ZEN17 Frequently Asked Questions

Advanced Settings

Support Portal

Blog Post: How to Automate Your Yard with the Zooz Universal Relay

WORKS WITH

  • Z-Box Hub (recommended for Zooz products)
  • ADT Pulse (no advanced settings)
  • eedomus
  • Ezlo Plus
  • Fibaro Home Center 2
  • Fibaro Home Center Lite
  • Home Assistant (Z-Wave JS)
  • HomeSeer (with Z-Wave Plus plug-in)

  • Homey (Zooz App for Homey, NOTE: creating child devices for inputs is NOT  currently supported.)
  • Hubitat (2.2.6 release or higher)
  • Indigo (NOTE: no security, Indigo does not support S2 Z-Wave security)
  • ISY
  • Jeedom
  • SmartThings (works best with the custom driver, installation instructions here)

NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.
